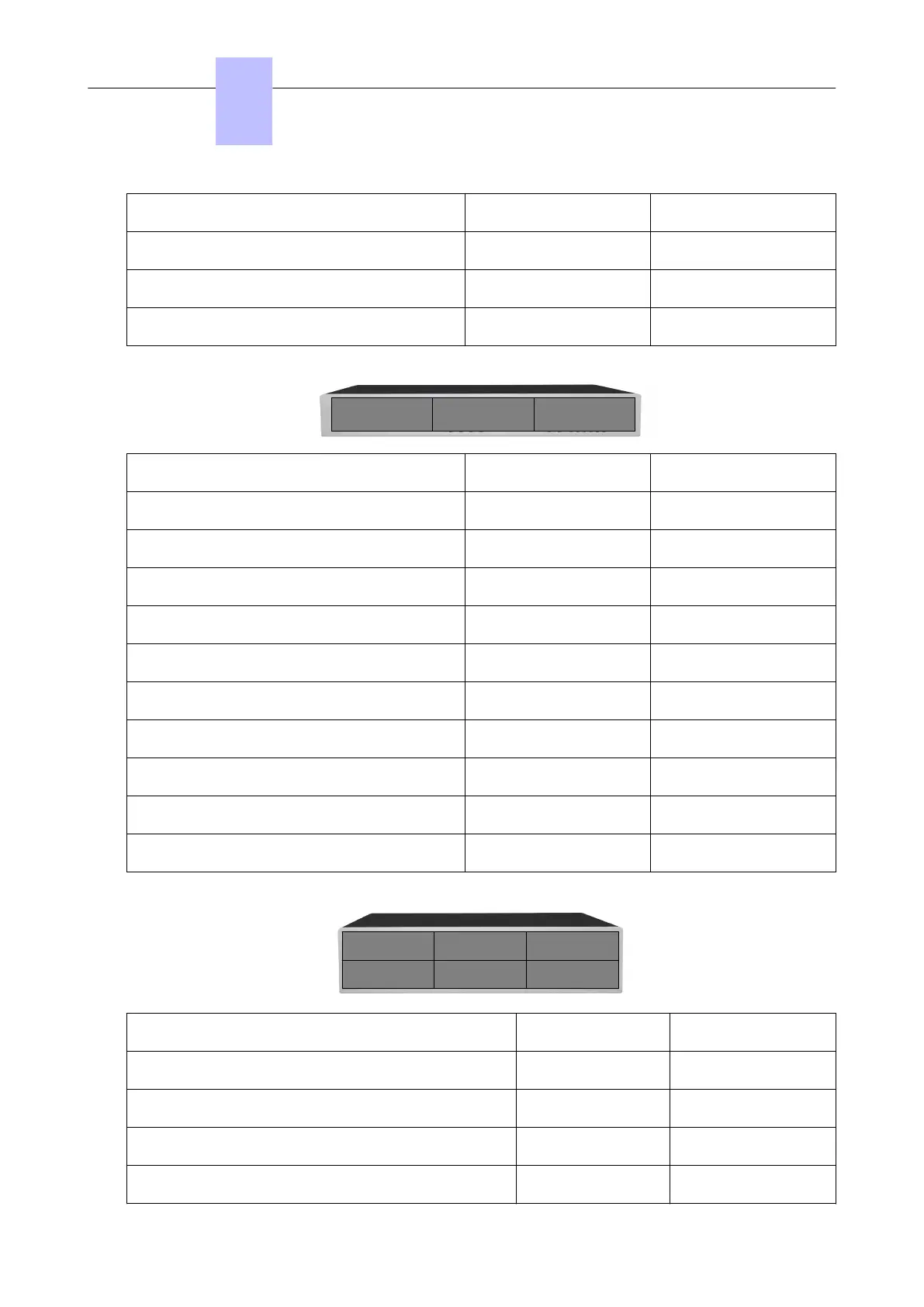

Board MIX Slot CPU Slot
PowerCPU EE No Mandatory
MIX-2 x/y/z Yes No
AMIX-1 x/y/z Yes No
2.4.2.11.2 OXO Connect S
SLOT1 SLOT2 SLOT CPU
Boards Slots 1-2 CPU Slot
PowerCPU EE No Mandatory
MIX-2 x/y/z Yes No
AMIX-1 x/y/z Yes No
UAI4, UAI8, UAI16, UAI16-1 Yes No
SLI4-2, SLI8-2 Yes No
SLI16-2 No No
PRA-T2, PRA-T1, DLT2, PCM R2 Yes No
APA4, APA8 Yes No
BRA2-2, BRA4-2, BRA8 Yes No
LanX8-2, LanX16-2 Yes No
2.4.2.11.3 OXO Connect M
SLOT1
SLOT2
SLOT4SLOT3 SLOT5
SLOT CPU
Boards Slots 1-2-3-4-5 CPU Slot
PowerCPU EE No Mandatory
MIX-2 x/y/z Yes No
AMIX-1 x/y/z Yes No
UAI4, UAI8, UAI16, UAI16-1 Yes No
Chapter
2
Hardware: Platform and Interfaces
3EH21123USAA - Ed. 01 - April 2017 - Installation Manual 31/207
