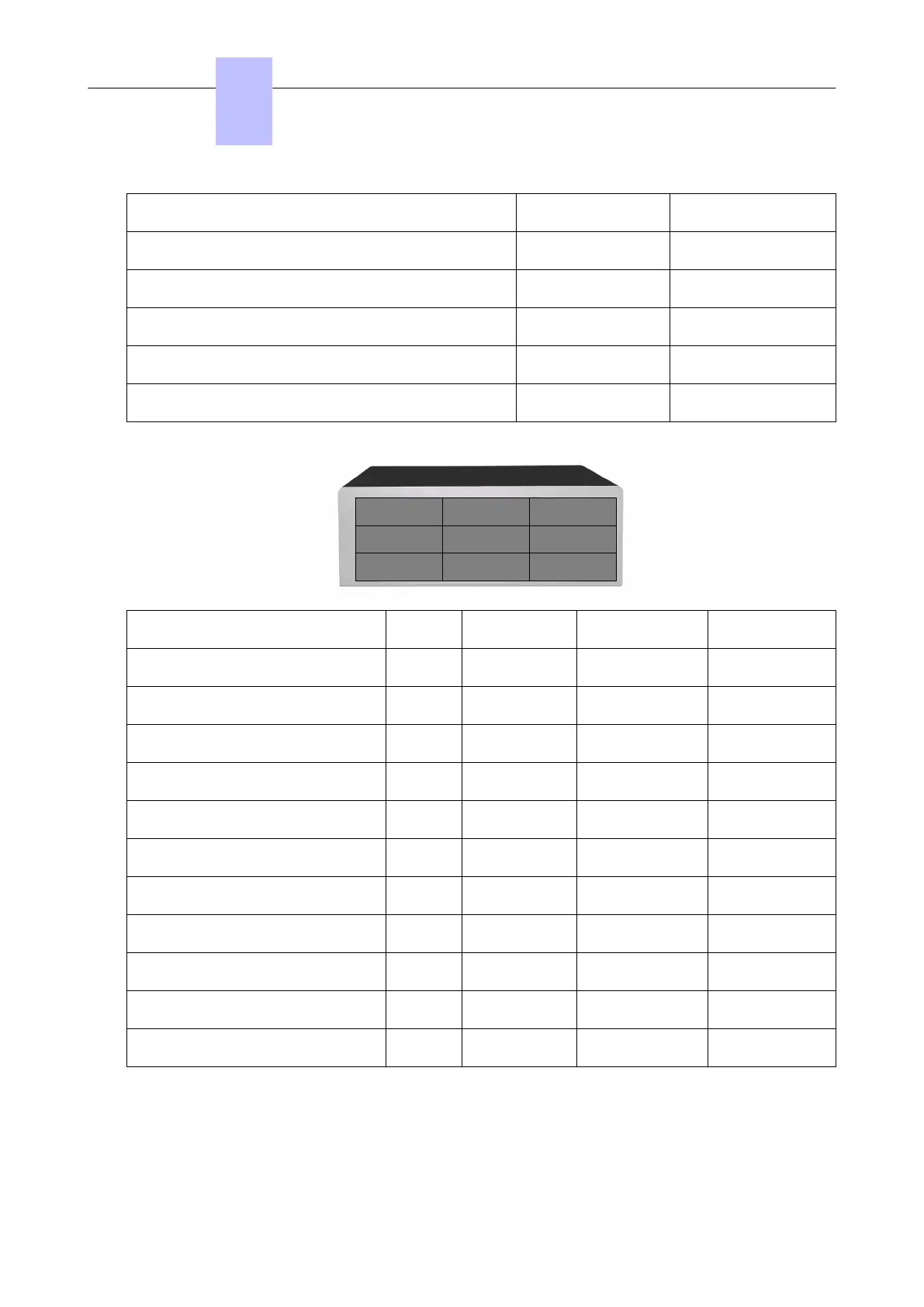

Boards Slots 1-2-3-4-5 CPU Slot
SLI4-2, SLI8-2, SLI16-2 Yes No
PRA-T2, PRA-T1, DLT2, PCM R2 Yes No
APA4, APA8 Yes No
BRA2-2, BRA4-2, BRA8 Yes No
LanX8-2, LanX16-2 Yes No
2.4.2.11.4 OXO Connect L
SLOT1 SLOT2
SLOT4
SLOT7SLOT6
SLOT3 SLOT5
SLOT8
SLOT CPU
Boards Slot 1 Slots 2-3-4 Slots5-6-7-8 CPU Slot
PowerCPU EE No No No Mandatory
MIX-2 x/y/z Yes Yes No No
AMIX-1 x/y/z Yes Yes No No
UAI4, UAI8 Yes Yes Yes No
UAI16, UAI16-1 Yes Yes No No
SLI4-2, SLI8-2, SLI16-2 Yes Yes Yes No
PRA-T2, PRA-T1, DLT2, PCM R2 Yes Yes Yes No
APA4 Yes Yes Yes No
APA8 Yes No Yes No
BRA2-2BRA4-2, BRA8 Yes Yes Yes No
LanX8-2, LanX16-2 Yes Yes Yes No
Chapter
2
Hardware: Platform and Interfaces
3EH21123USAA - Ed. 01 - April 2017 - Installation Manual 32/207
