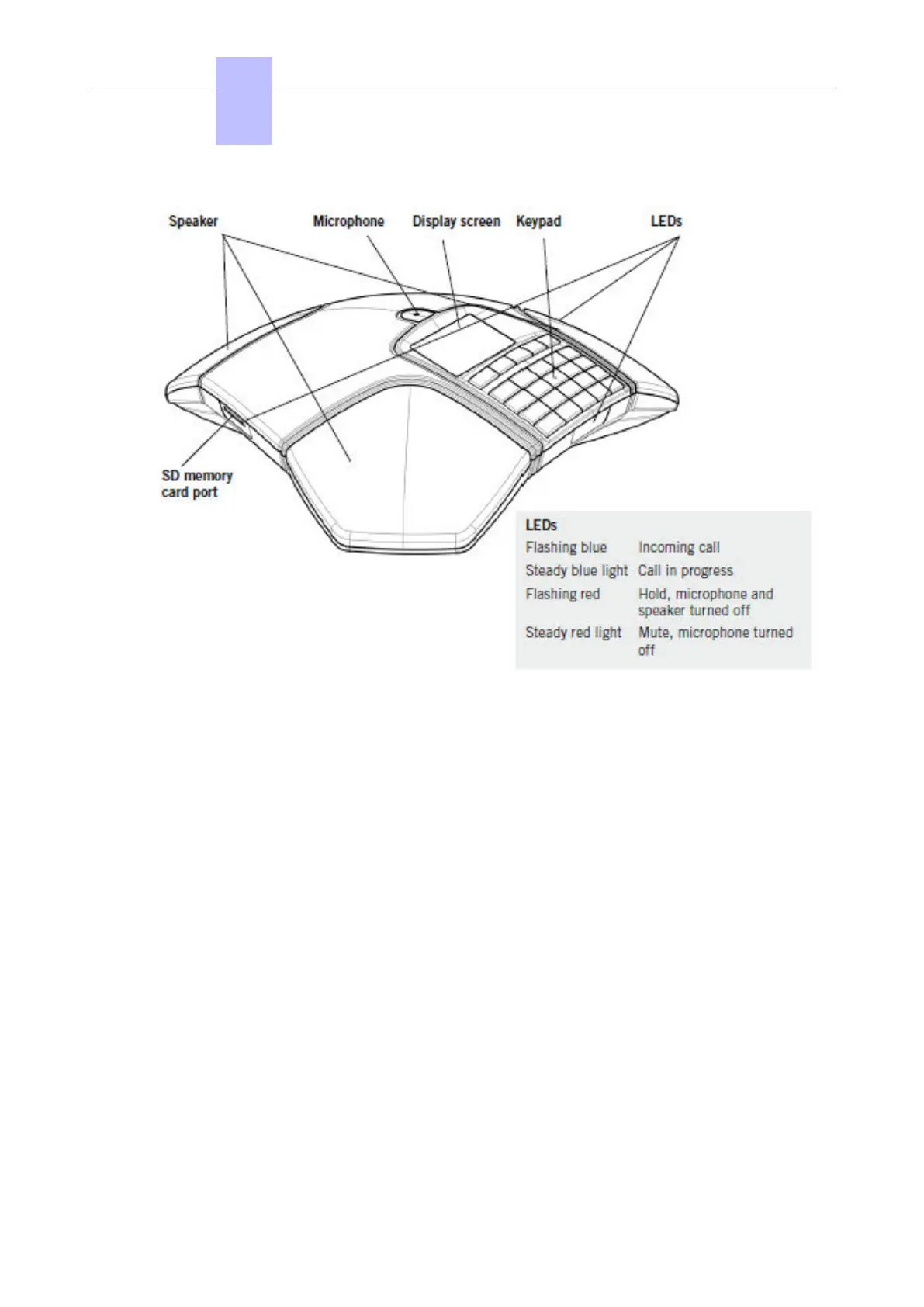

Figure 4.5: 4135 IP Conference Phone set layout
The following figure illustrates the connectors on the base of each set.
Chapter
4
Installation and Cabling
3EH21123USAA - Ed. 01 - April 2017 - Installation Manual 88/207
