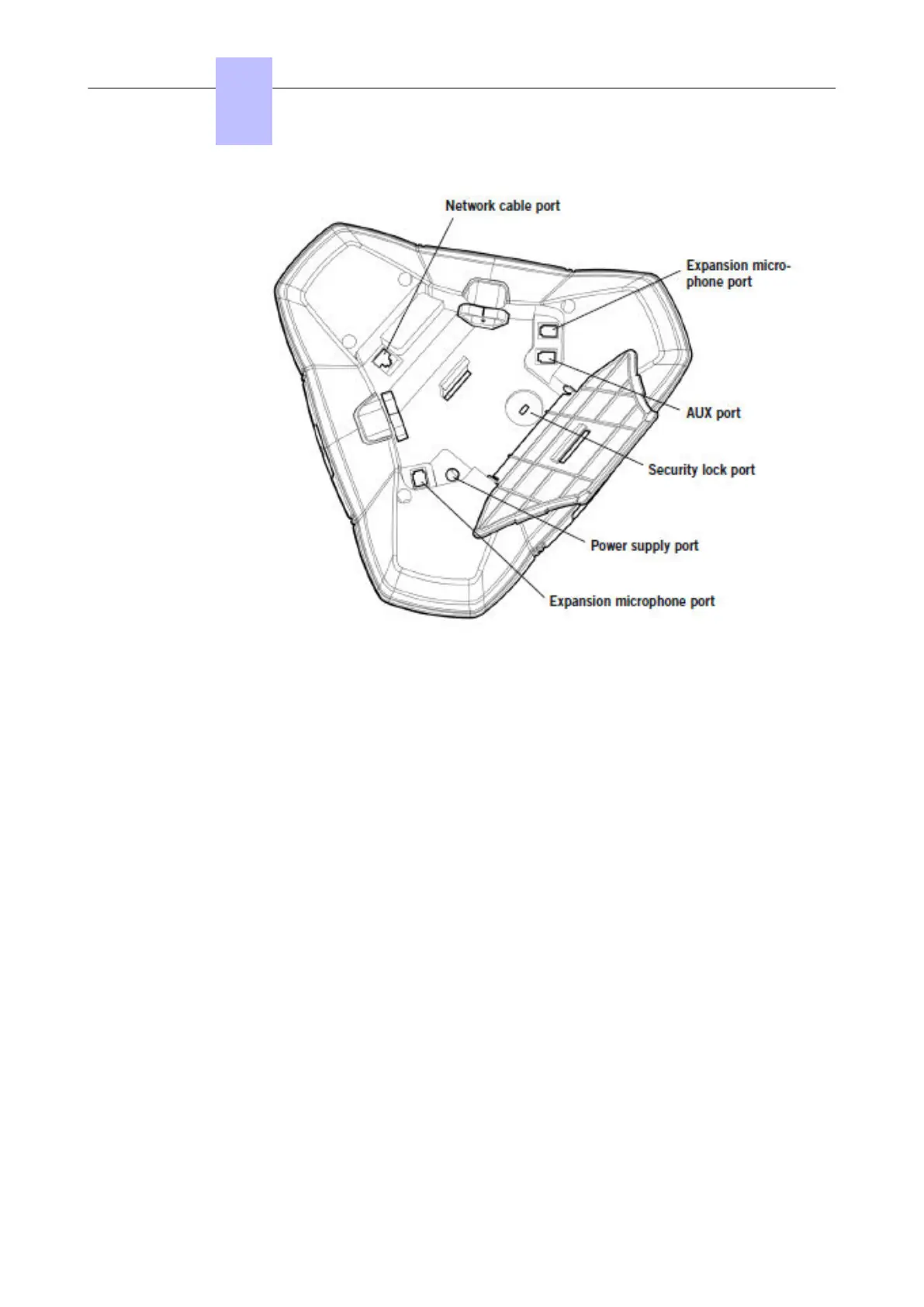

Figure 4.6: 4135 IP Conference Phone set connectors
The 4135 IP Conference Phone is a SIP device which has no handset; it is dedicated to be used as
central for conferences.
Conferences are not managed by the system, but by the device itself. Up to four 4135 IP Conference
Phones can be connected to the OXO Connect.
4.4.3.1.2 Commissioning the set
This section describes how to commission the set in the two available commissioning types:
• Static: commissioning is manual on the set and on OMC
• Dynamic (DHCP): the set automatically retrieves its IP address and other parameters from a DHCP
server (OXO Connect DHCP server or an external DHCP server) . Complementary operations are
necessary on the set and on OMC
For static commissioning, operations are:
1. Configure the user in OMC, refer to Configuring the user by OMC on page 90
2. Connect the set to the LAN, refer to Connecting the set to the LAN on page 90
3. Configure the network parameters on the set, refer to Configuring network parameters for static
initialization on page 92
4. Export the server certificate from the OXO Connect: refer to Exporting the server certificate from the
OXO Connect on page 92
5. Upload the certificate on the 4135 IP Conference Phone
For dynamic commissioning, operations are:
1. Configure OXO Connect DHCP server, refer to Configuring OXO Connect DHCP server on page
91, or configure an external DHCP server, refer to Configuring an external DHCP server on page
91
2. Connect the set to the LAN, refer to Connecting the set to the LAN on page 90
Chapter
4
Installation and Cabling
3EH21123USAA - Ed. 01 - April 2017 - Installation Manual 89/207
