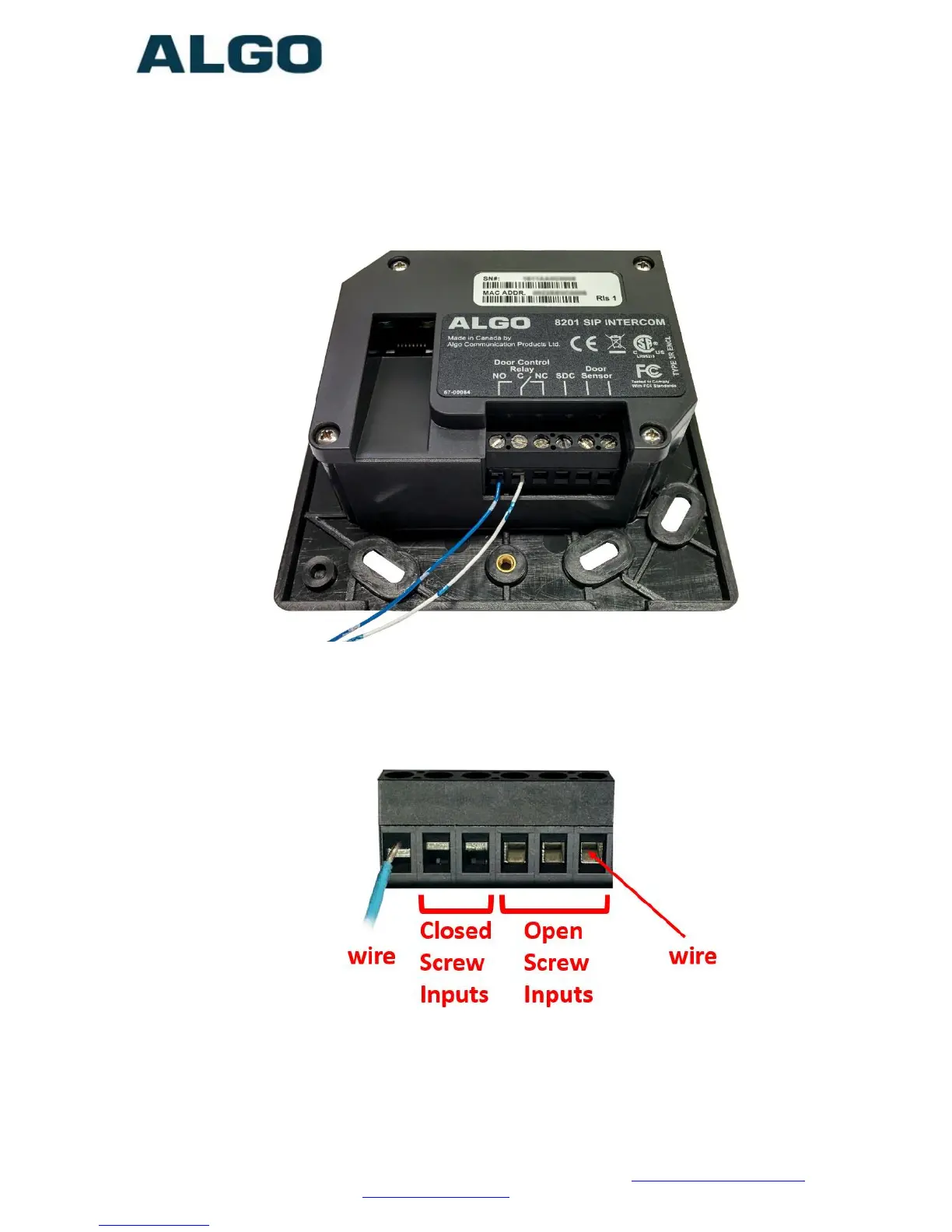

Wiring Connections
Note: The screw inputs by default are closed to prevent vibration
when the speaker is active. To use, open the desired input using a
screw driver, insert the wire, and close the input again. Ensure that
other inputs remain closed if they are not in use.
Network Connection
Connect RJ45 jack from PoE network switch or non-PoE network
and 48V 350 mA IEEE 802.3af compliant power injector.
