15. Power-supply unit 16. Liquid-cooling assembly (optional)
17. Rear-chassis fan (optional)
NOTE: The optional components may not be present in your computer, depending on its configuration.

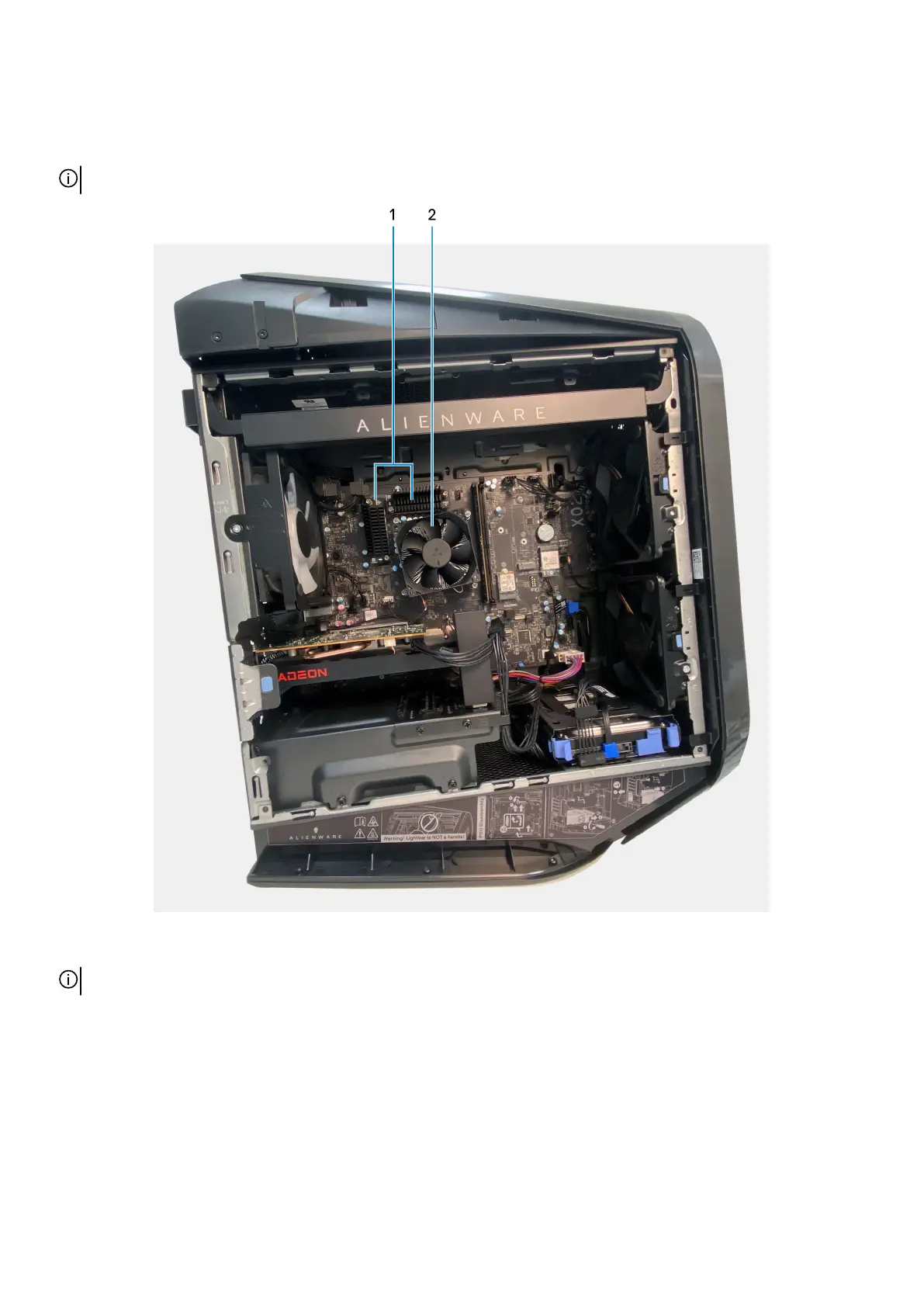

1. VR heat sink (2)
2. Processor fan and heat-sink assembly
NOTE: The side light is not featured for the computer shown in the image.
11
