Steps
1. Loosen the bolts that connect the antenna cables to the SMA connectors on the chassis.
2. Remove the antenna cables off the SMA connectors on the chassis to disconnect the external antenna from the computer.
Next steps
1. Follow the procedure in
After working inside your computer.

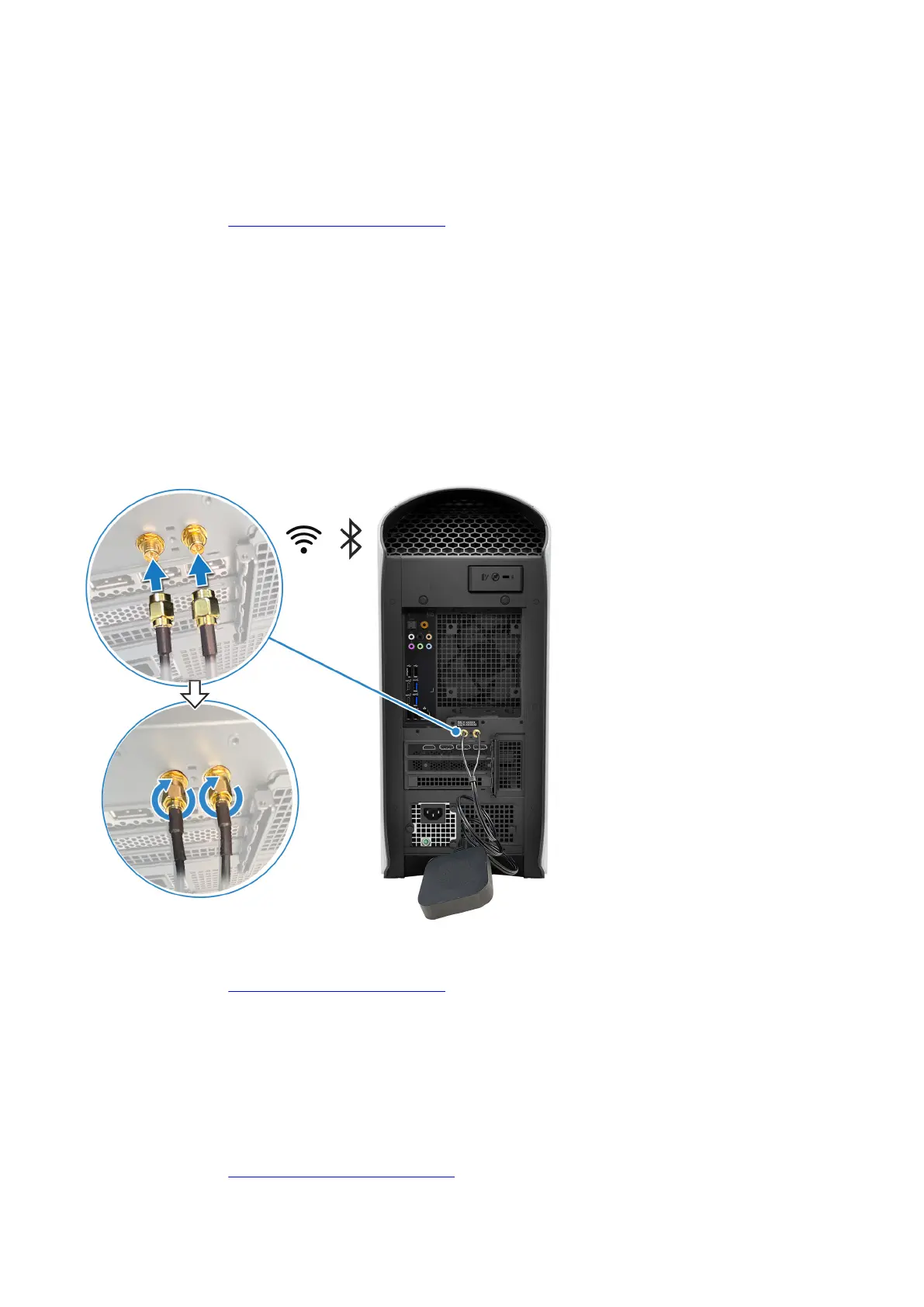

Installing the antenna
About this task
This computer is shipped with an external puck antenna. Connect the external antenna during setup, to connect to WiFi and
Bluetooth and improve the memory performance. To connect the antenna cables, follow the below procedure:
Steps
1. Align and connect the antenna cables to the SMA connectors on the chassis.
2. Tighten the bolts to secure the antenna cables to the SMA connectors on the chassis to connect the external antenna to the
computer.
Next steps
1. Follow the procedure in After working inside your computer.
Cable cover
Removing the cable cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
15
