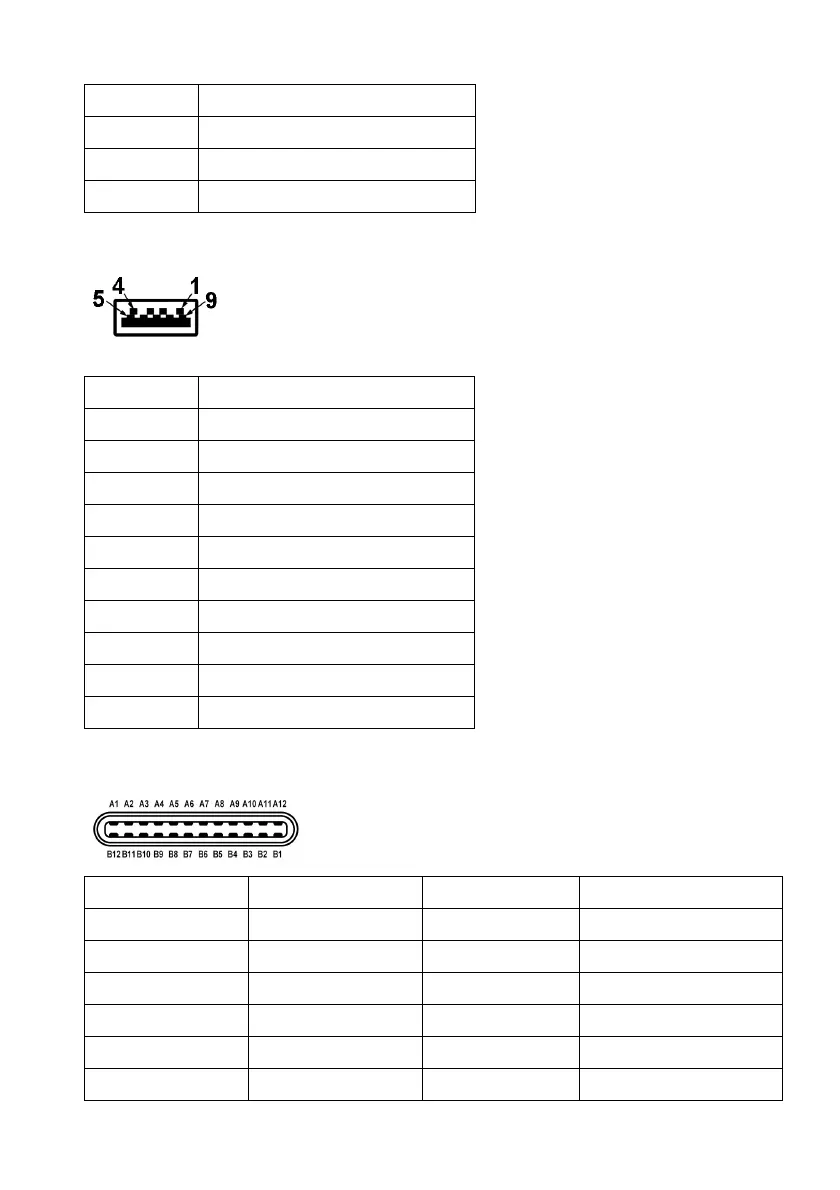

USB 3.2 Gen 1 (5 Gbps) downstream connector
USB Type-C connector
8StdB_SSRX-
9S
tdB_SSRX+
Shell Shield
Pin number Signal name
1VBUS
2D-
3D+
4GND
5 StdA_SSRX-
6 StdA_SSRX+
7GND_DRAIN
8 StdA_SSTX-
9 StdA_SSTX+
Shell Shield
Pin number Signal name Pin number Signal name
A1 GND B1 GND
A2 TX1+ B2 TX2+
A3 TX1- B3 TX2-
A4 VBUS B4 VBUS
A5 CC1 B5 CC2
A6 D+ B6
D+
Pin number Signal name
