Alinx AXU4EV-E - Part 3.9: CAN Communication Interface

ZYNQ Ultrascale + FPGA Board AXU4EV-E User Manual
48 / 58
Amazon Store: https://www.amazon.com/alinx
23
B44_L6_N
AC13
24
B44_L6_P
AC14
25
B44_L10_N
Y13
26
B44_L10_P
Y14
27
B44_L2_N
AH14
28
B44_L2_P
AG14
29
B43_L8_N
AC11
30
B43_L8_P
AB11
31
B43_L7_N
AD10
32
B43_L7_P
AD11
33
B43_L6_N
AD12
34
B43_L6_P
AC12
35
B44_L7_N
AB13
36
B44_L7_P
AA13
37
GND
-
38
GND
-
39
+3.3V
-
40
+3.3V
-
Part 3.9: CAN communication interface
There are 2 CAN communication interfaces on the AXU4EV-E carrier
board, which are connected to the MIO interface of the BANK501 on the PS
system side. The CAN transceiver chip selected TI's SN65HVD232C chip for
user CAN communication services. The connection of the CAN transceiver
chip on the PS side is show as Figure 3-9-1

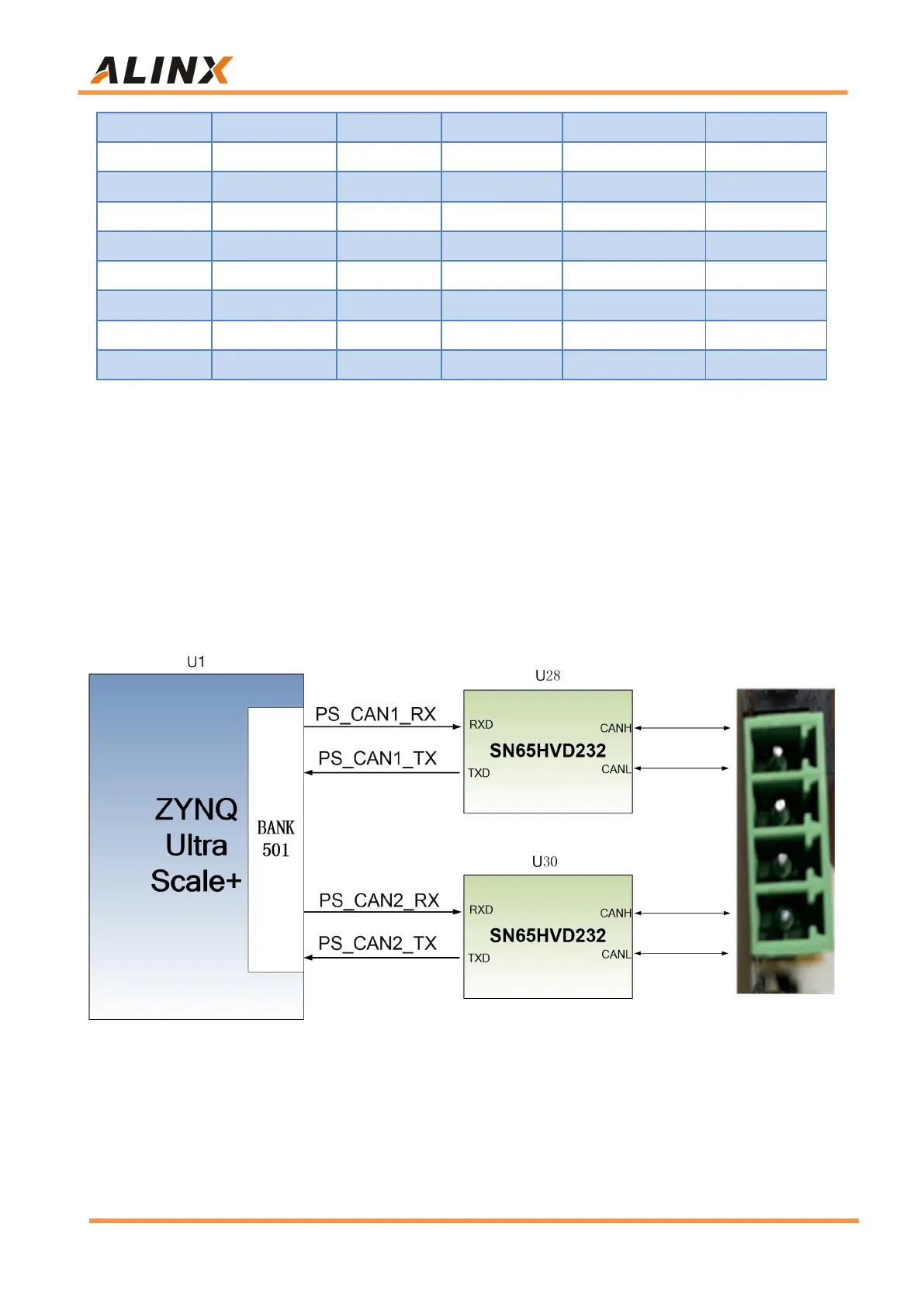

Figure 3-9-1: Connection diagram of CAN transceiver chip on PS side
