ZYNQ Ultrascale + FPGA Board AXU4EV-E User Manual
Amazon Store: https://www.amazon.com/alinx

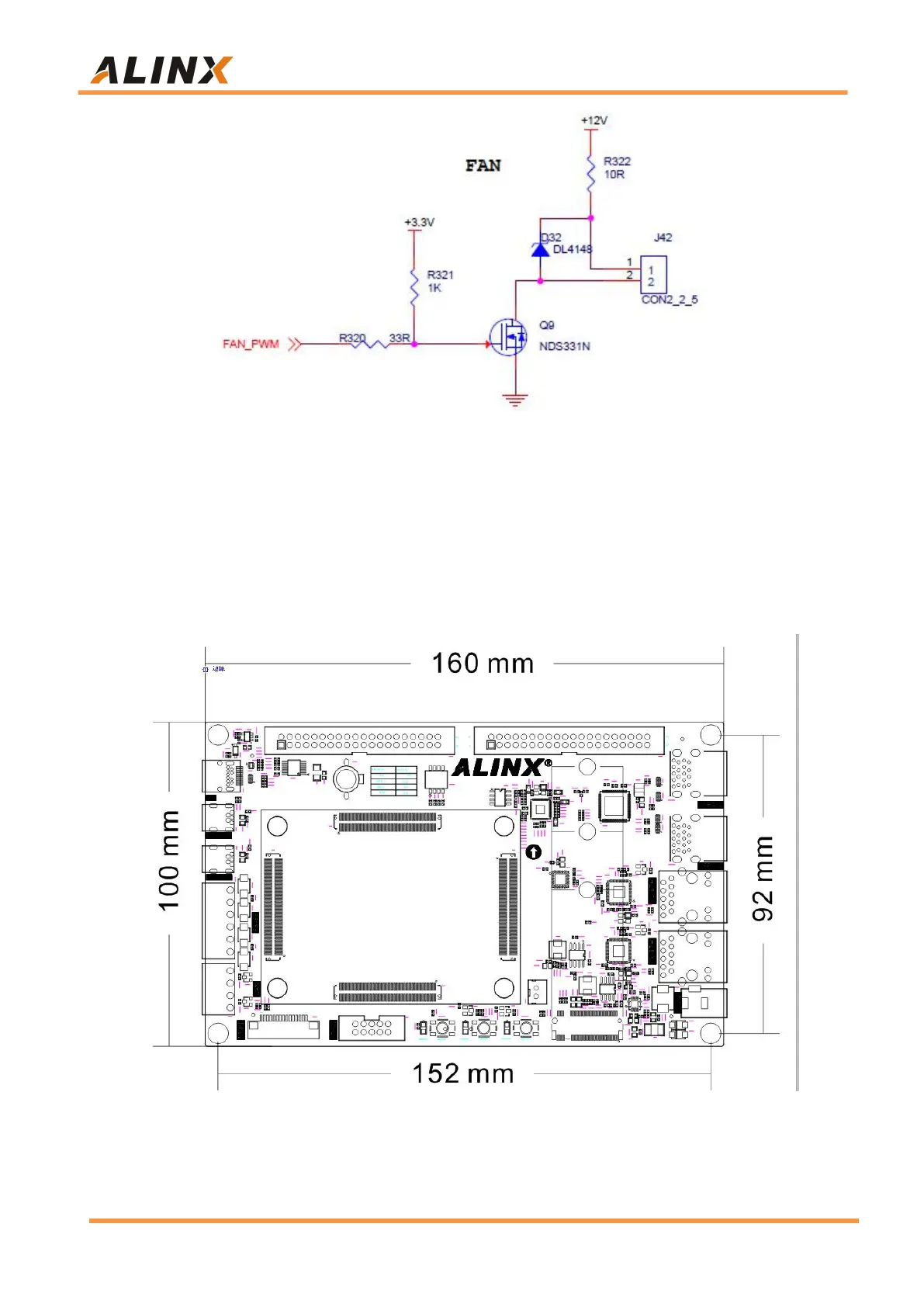

Figure 3-16-1：Fan Design Schematic
The fan has been screwed to the AXUEG FPGA development board
before leaving the factory. The power of the fan is connected to the socket of
J24. The red is positive and the black is negative.
Part 3.20: Carrier Board Size Dimension
Figure 3-20-1: Top View
