EEPROM pin assignment:
Signal Name
ZYNQ Pin Name
ZYNQ Pin Number
Description
PS_I2C1_SCL
PS_MIO24
AB19
I2C Clock Signal
PS_I2C1_SDA
PS_MIO25
AB21
I2C Data Signal
Part 3.15: User LEDs
There are 3 LEDs on the AXU4EV-E Carrier board. including 1 power
indicator light, 1 User LED Controlled by PS side, and 1 User LED Controlled
by PL side. The user can control the user LED on and off through the program.
When the IO voltage of the connected user LED light is low, the user LED light
is off, and when the connected IO voltage is high, the user LED will be lit. The

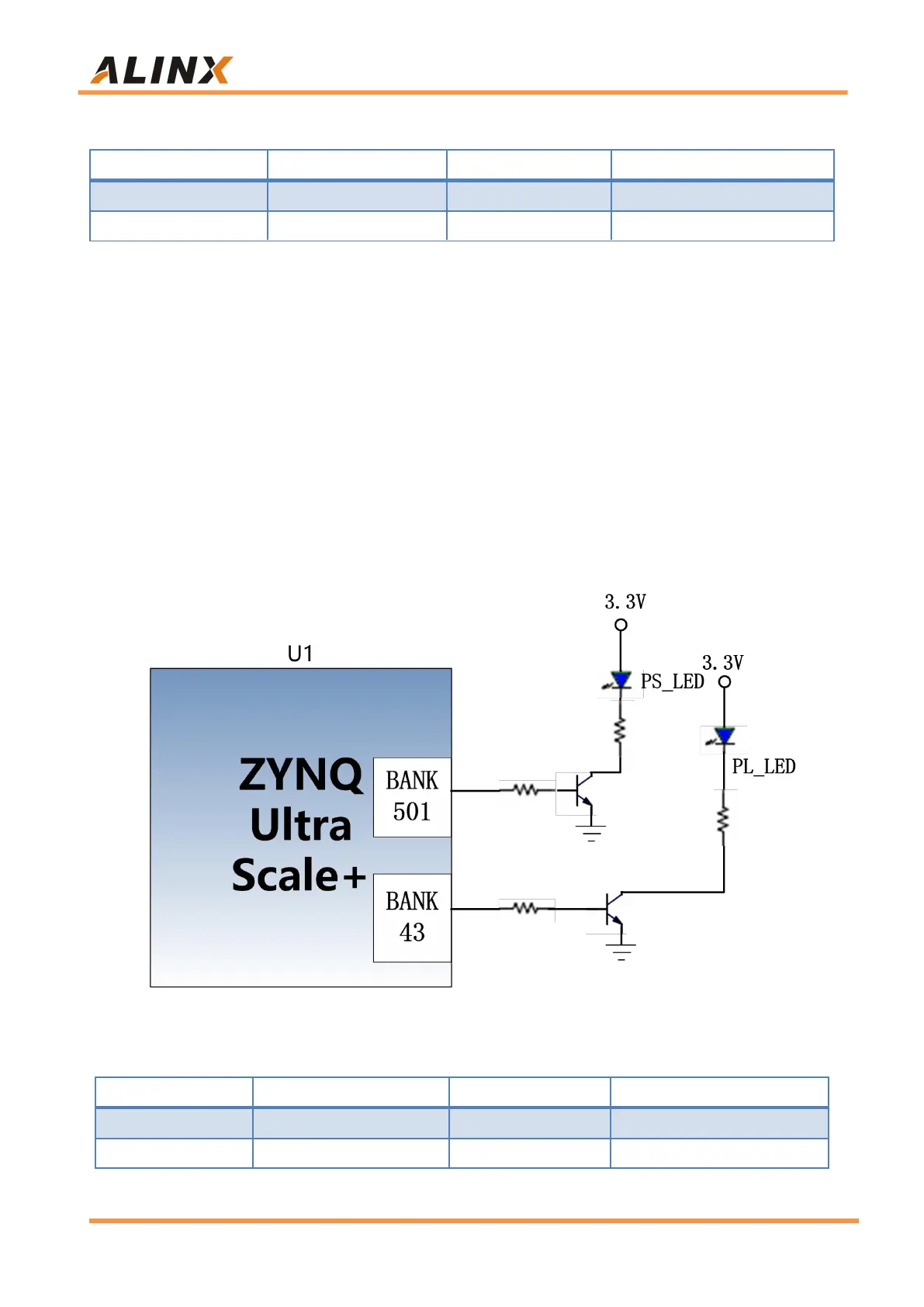

schematic diagram of the user's LED light hardware connection is shown in
Figure 3-15-1:
Figure 3-15-1: The User LEDs Hardware Connection Diagram
Pin assignment of user LED lights
Signal Name
ZYNQ Pin Name
ZYNQ Pin Number
Description
PS_LED1
PS_MIO40
K18
User LED controlled by PS
PL_LED1
B43_L5_P
AE12
User LED controlled by PL
