ZYNQ Ultrascale + FPGA Board AXU4EV-E User Manual
Amazon Store: https://www.amazon.com/alinx

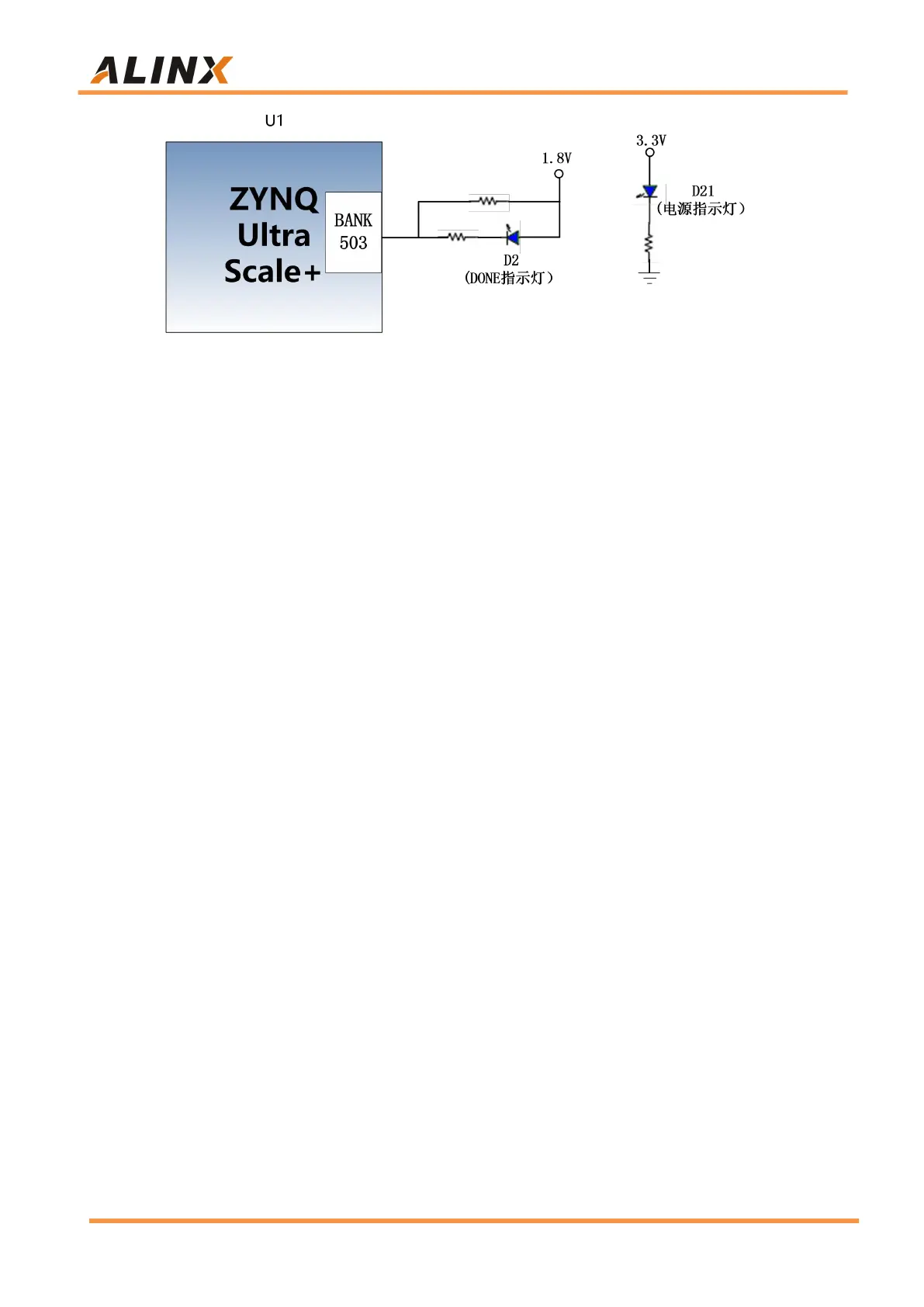

Figure 2-7-1: LED Schematic in the Core Board
Part 2.8: Power Supply
The power supply voltage of the ACU4EV core board is DC12V, which is
supplied by connecting the carrier board. The core board uses a PMIC chip
TPS6508641 to generate all the power required by the XCZU4EV chip. For the
TPS6508641 power supply design, please refer to the power supply chip
manual. The design block diagram is as follows:
