Allen-Bradley 1203 Series User Manual

3–4 Installing the Module
3. Connect a SCANport cable (1202-Cxx) to a module and product.
Important:
For the location of the SCANport connector on your
product, refer to its user manual. If you are using a port
expander, refer to its documentation.

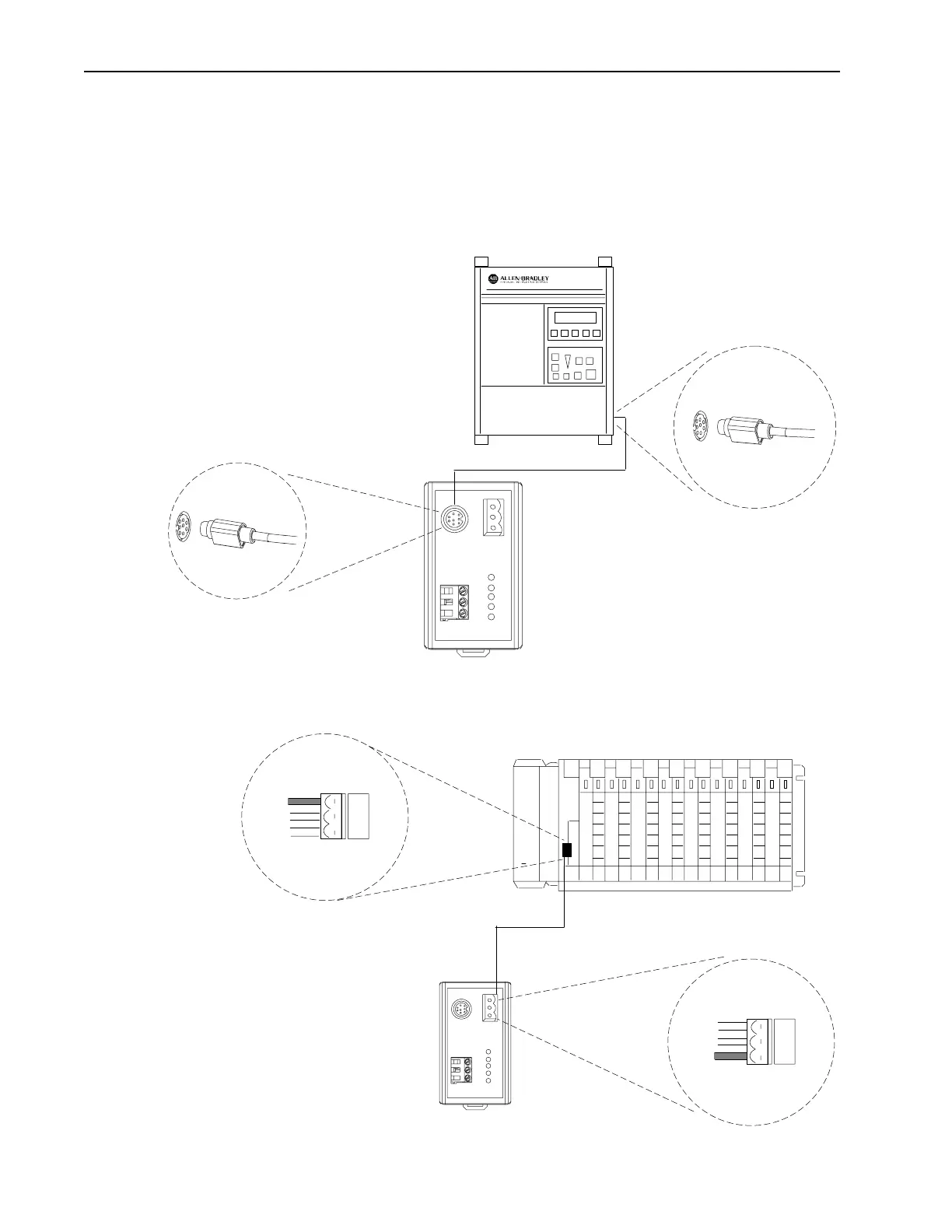

Figure 3.2 Connecting the SCANport Cable
4. Connect a Remote I/O cable to the module and link or controller.
Figure 3.3 Connecting the Remote I/O Cable
.
Module
SCANport Product
1
SH
2
Blue
Shield
Clear
.
.
.
1
SH
2
Blue
Shield
Clear
PLC Controller
Module
Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com

Allen-Bradley 1203 Series Specifications

General

Series	1203
Manufacturer	Allen-Bradley
Input Voltage	24V DC
Operating Temperature	0°C to 55°C
Housing Material	Plastic
