56 Using Block Transfer Messages

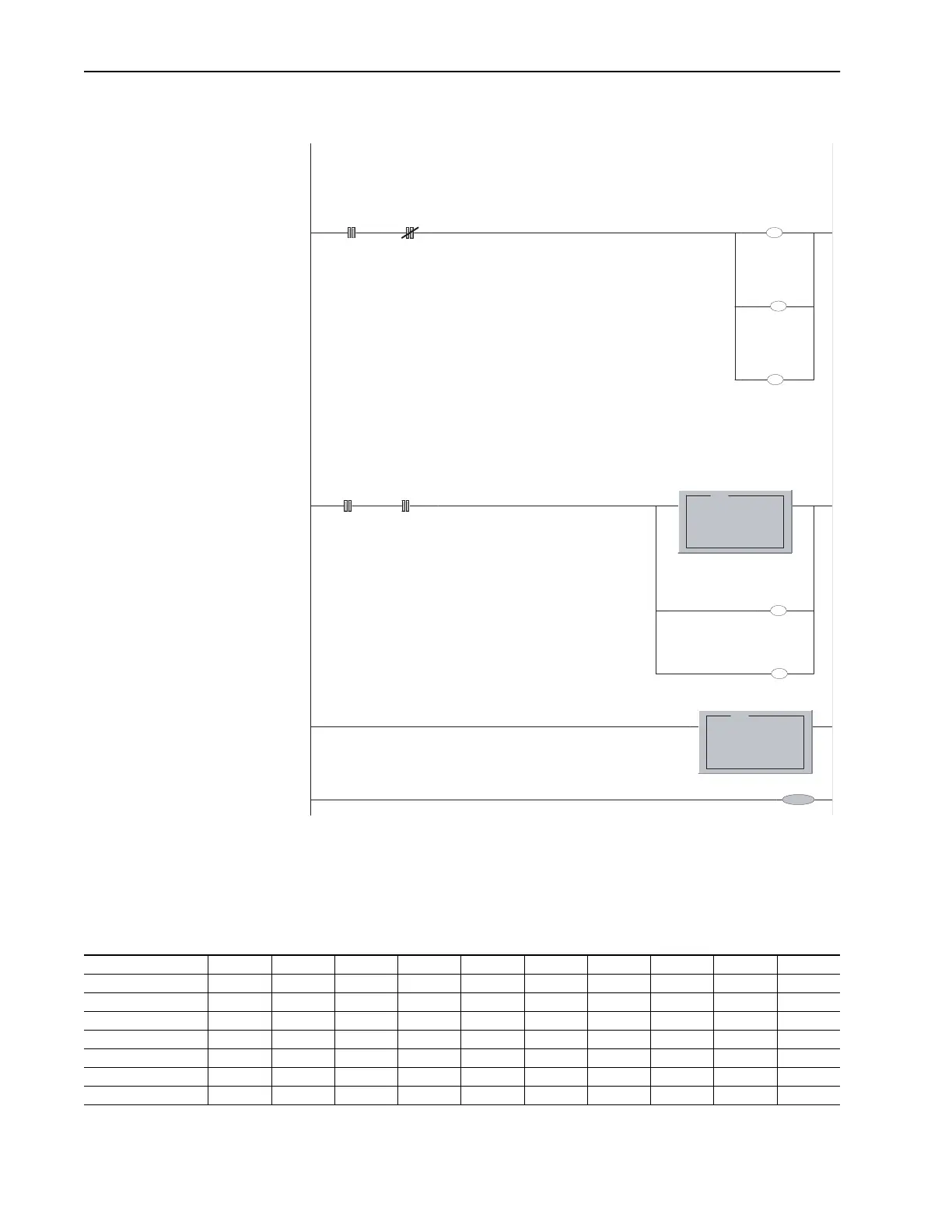

Figure 5.5 SLC Block Transfer Continued
Example Data File
Data is displayed as decimal values.
When the Gx1 indicates that it is ready for a BTR, this rung sets up the BT buffer for a
BTR and enables it.
0004
I:1.0
10
1747-SN
BTR
Available
N10:0
15
Virtual
BT.EN
Bit
L
N10:0
7
Virtual
BT.Type
Bit
0 = BTW
1 = BTR
L
N10:0
15
Virtual
BT.EN
Bit
U
N10:100
13
Virtual
BT.DN
Bit
This rung copies the BT Status data already received from the 1747-SN into an N file within
the SLC and then clears the Virtual BT_Enable and User Logic bits.
0005
N10:0
7
Virtual
BT.Type
Bit
0 = BTW
1 = BTR
N10:100
13
Virtual
BT.DN
Bit
COP
Copy File
Source #N10:100
Dest #N11:0
Length 74
COP
U
N10:0
15
Virtual
BT.EN
Bit
U
B3:0
0
User
Logic
This rung copies the BT information to the 1747-SN for execution.
0006
COP
Copy File
Source #N10:0
Dest #M0:1.100
Length 74
COP
0007
END
0123456789
N10:0 128 64 0
N10:10 3 768 78*
. . .
N10:100 0640
N10:110 24768787354111024900
N10:120 24948 20256 29813 17440 8241 8224 8224 3850 0 125
N10:130 0 8224 8224
. . .
