– Current CIP I/O Connections
– CIP I/O Connection Limit
– Max I/O Connections Observed
– Conn Opens
– Open Errors
– Conn Closes
– Close Errors
– Conn Timeout
– Status
• Module Settings
– Chassis Size
– Switches
Use the Network Settings Page
To use the Network Settings page for network related information, follow this
procedure.
1. Click Network Settings from the tab at the top of the page or panel on the
left.

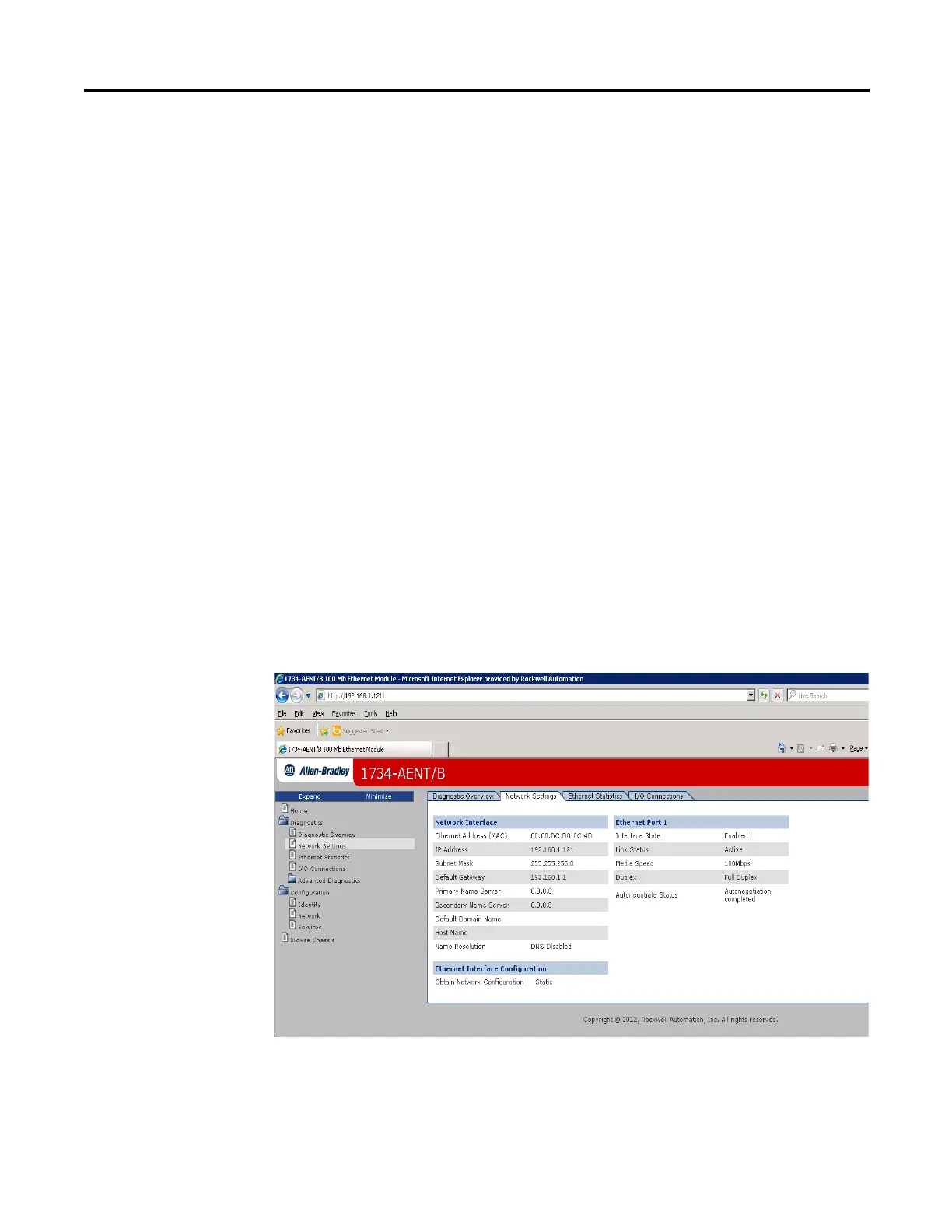

This opens the Network Settings page.
2. From the Network Settings page, view the following:
• Network Interface
– Ethernet Address (MAC)
– IP Address
