Use the Network Configuration Page
To use the Network Configuration page to make entries for enabling or disabling
DHCP and setting TCP/IP parameters and Ethernet link operation, follow this
procedure.

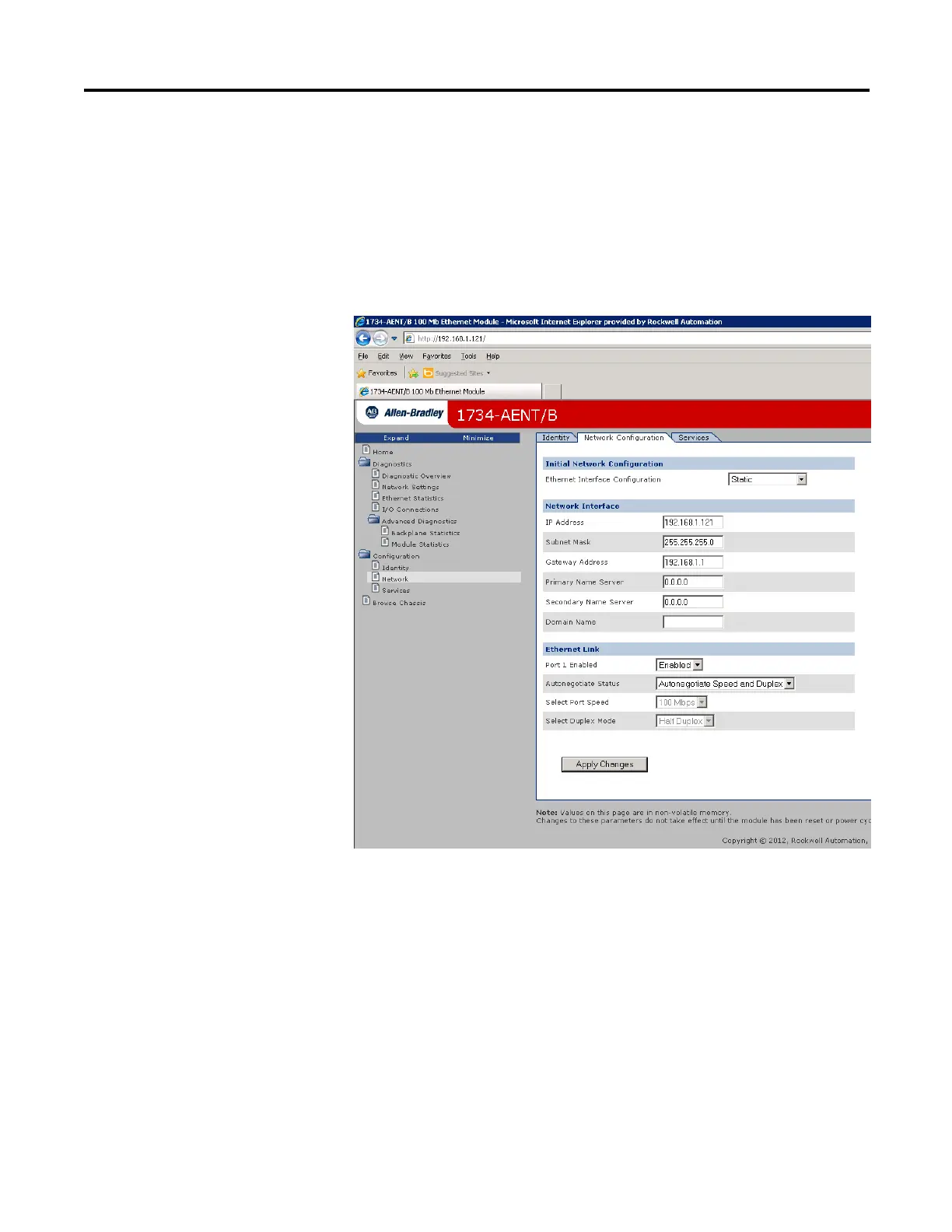

1. Click Network from the tab at the top of the page or panel on the left. The
Network Configuration page opens.
2. From the Network Configuration page, complete these entries, noting that
values for Network Interface are disabled when DHCP is
Dynamic DHCP and port speed and duplex mode are disabled when
Autonegotiate Speed and Duplex is selected.
• For Initial Network Configuration:
– Ethernet Interface Configuration
- Static
- Dynamic DHCP
• For Network Interface, select from these choices:
– IP Address
– Subnet Mask
– Gateway Address
To Next Page
