Allen-Bradley 1734 - Configure the Adapter with Fixed IP Address

52 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017
Chapter 4 Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software
Configure the Adapter with
Fixed IP Address
To configure the adapter with a fixed IP address to prevent the adapter from
ceasing to communicate with the ControlLogix controller:
1. All controllers with I/O connections to the AENT and/or the modules in
its backplane need to be in program mode.

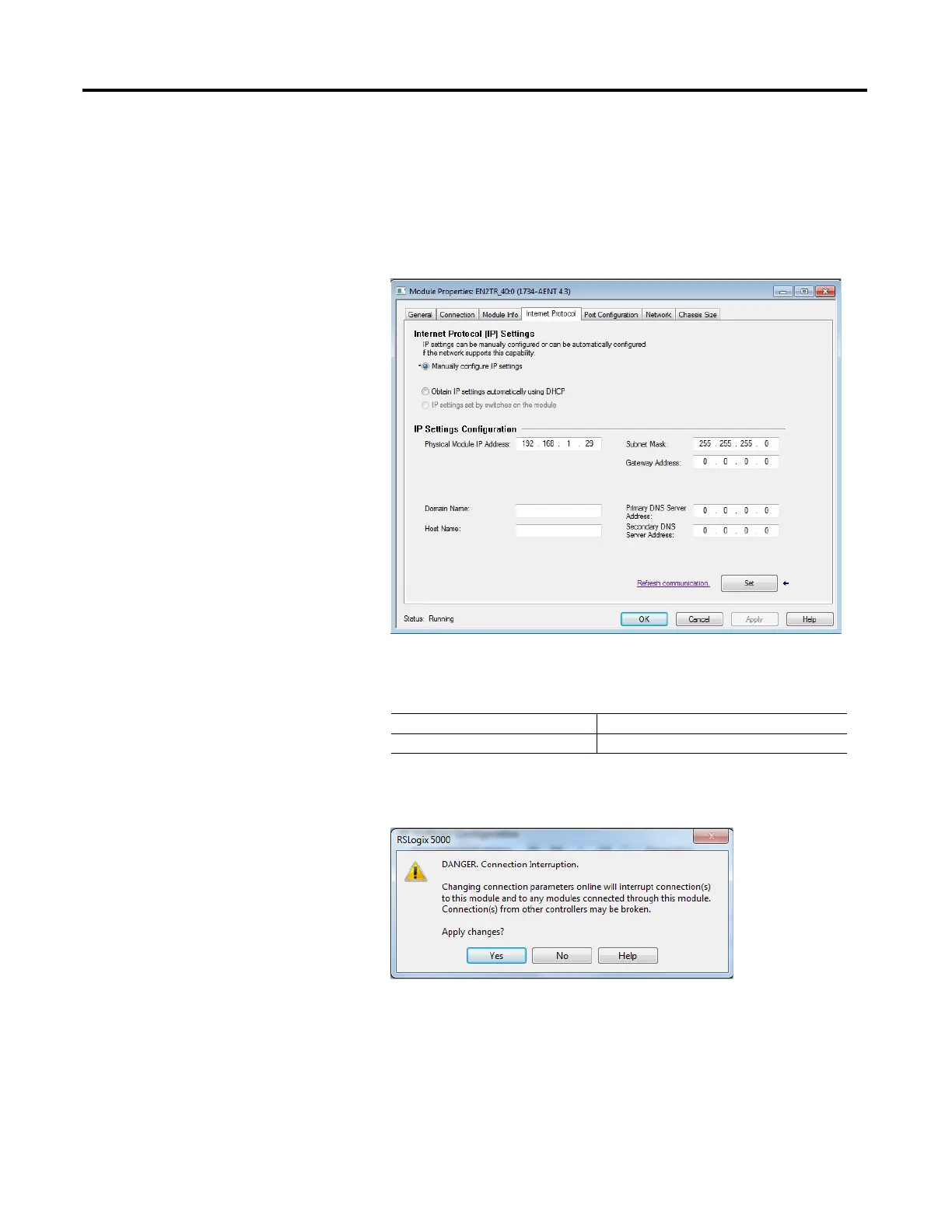

2. In the Module Properties dialog, click the Internet Protocol tab.
3. If it is not selected, select Manually configure IP settings.
4. Enter values for Physical Module IP Address, and Subnet Mask, noting we
used the following values:
5. Click Set
6. Read and acknowledge the warning.
7. Click Yes.
8. Click the Refresh communication button to verify the changes.
Physical Module IP Address 192.168.1.29
Subnet Mask 255.255.255.0
