9. In the New Module screen click OK to accept the new configuration.
The 1734-AENT/B adapter appears indented under the local
1756-ENBT bridge module in the I/O Configuration folder.
Note: The requested packet interval (RPI) is disabled because you have
chosen None as the Connection.
Add the POINT I/O Modules to the I/O Configuration
You now add POINT I/O modules to the I/O Configuration List under the
adapter.
In this example, you add a 1734-OW2 relay output module and a 1734-OV4E
sink output module with standard configurations. Use these steps as a guide when
configuring different I/O modules for your system.
Add the Digital Relay Output Module

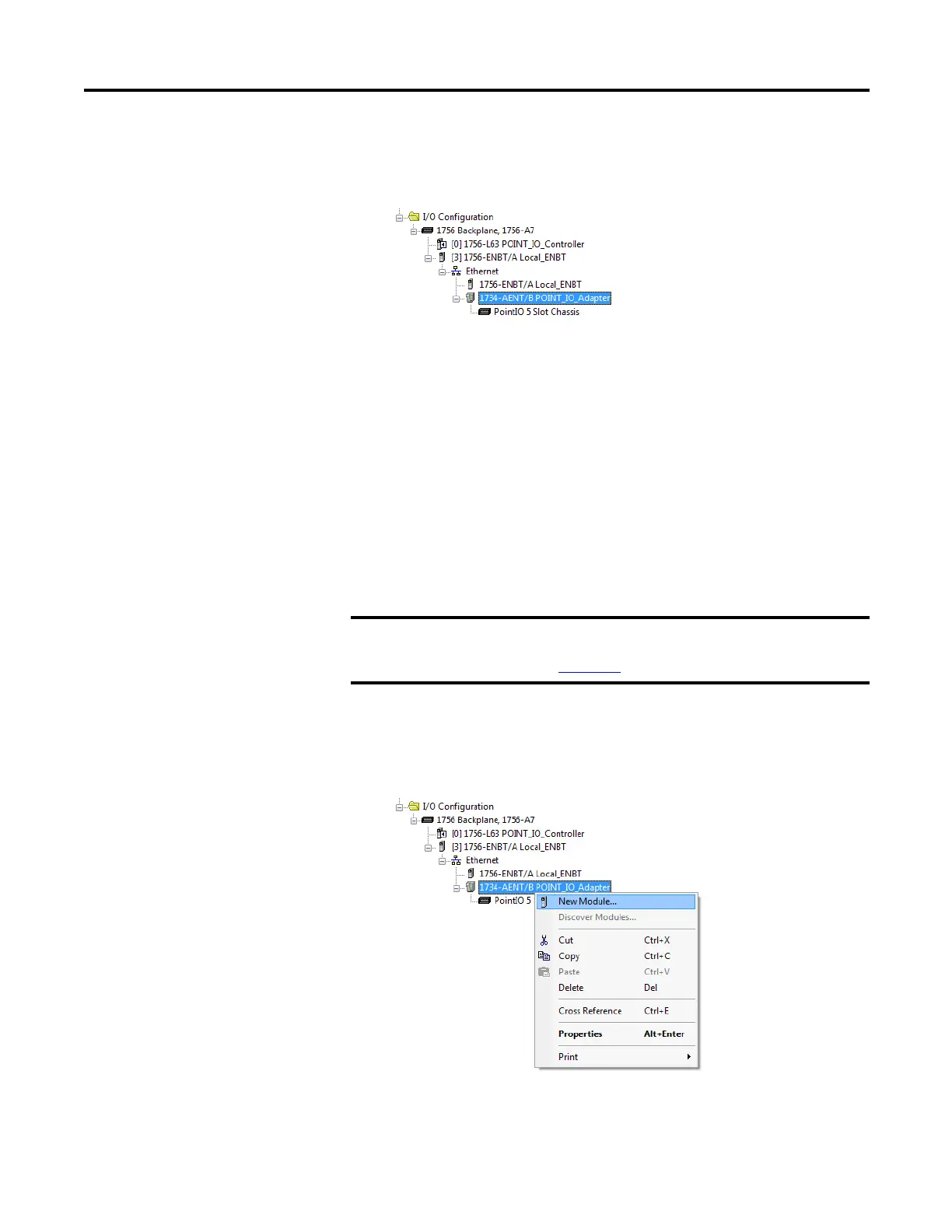

1. Highlight the 1734-AENT/B adapter under the I/O Configuration
folder, right-click and select New Module.
The Select Module Type dialog opens.
TIP
This example application uses I/O module default configurations.
For more information, refer to the POINT I/O Selection Guide,
publication
1734-SG001.
