Allen-Bradley 1734 User Manual

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 33
Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software Chapter 4
Create the Example
Application
Perform the following steps to create the example application:

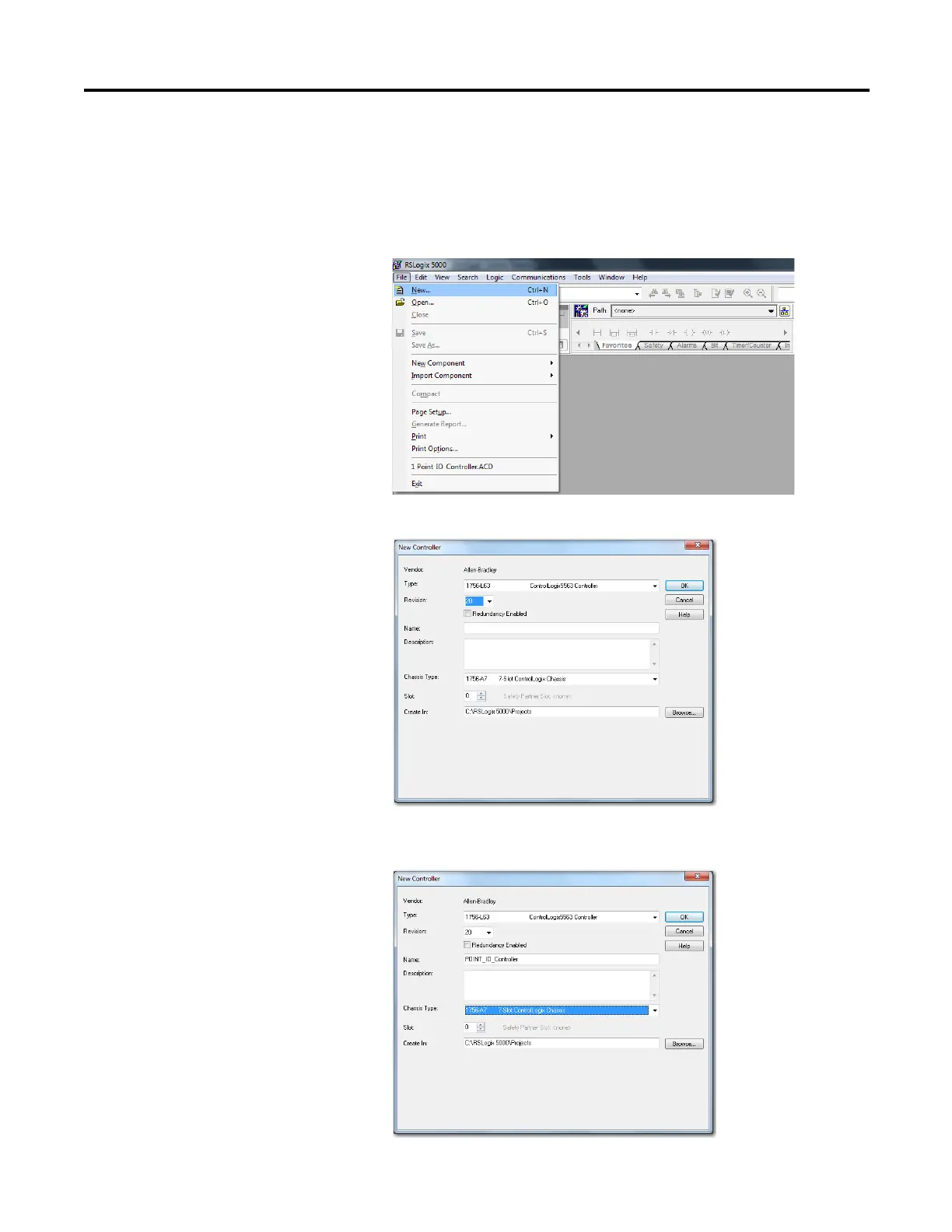

1. Start RSLogix 5000 Enterprise Series software to open the RSLogix 5000
main dialog.
2. From the File menu, select New.
3. The New Controller dialog opens.
4. Enter an appropriate Name for the Controller, for example,
POINT_IO_Controller.

Allen-Bradley 1734 Specifications

General

Product Type	POINT I/O Adapter
Mounting	DIN Rail
Communication	EtherNet/IP
Operating Voltage	24V DC
Operating Temperature	-20°C to 55°C
Relative Humidity	5% to 95% (non-condensing)
Housing Material	Plastic
