Allen-Bradley 1734 - Configuration Requirements

20 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017
Chapter 3 Configure the Adapter with RSLogix 5000 or Logix Designer Software
Configuration
Requirements
Before you can use your adapter, you must configure its IP address, its subnet
mask, and, optionally, a gateway address. You can use the Rockwell BootP/
DHCP utility, version 2.3 or later, to perform the
configuration. You can also use
a DHCP server or the network address switches to configure these parameters.
If you need to reset the adapter to factory defaults, see Work with the
Configuration Pages in Appendix B.
ATTENTION: You must only use Series C and above POINT I/O modules
with 1734-AENT EtherNet/IP Adapters. Series A or Series B POINT I/O
modules do not work with 1734-AENT EtherNet/IP Adapters (does not
apply to POINTGuard modules).
IMPORTANT
If you set the thumbwheels on the adapter to the value 888 and then
power cycle the module, the following will occur.
· The DHCP Enabled function is enabled (set to True).
· The Ethernet link is negotiated automatically (the Auto Negotiate
function will be set to True).
· The web server is enabled (the Disabled Web Server function is
disabled).
· The password for this page resets to the factory default (the word
password is the factory default password).
Note the value of the switches before you enter the 888 value,
because you return the adapter to those values once this process is
complete.

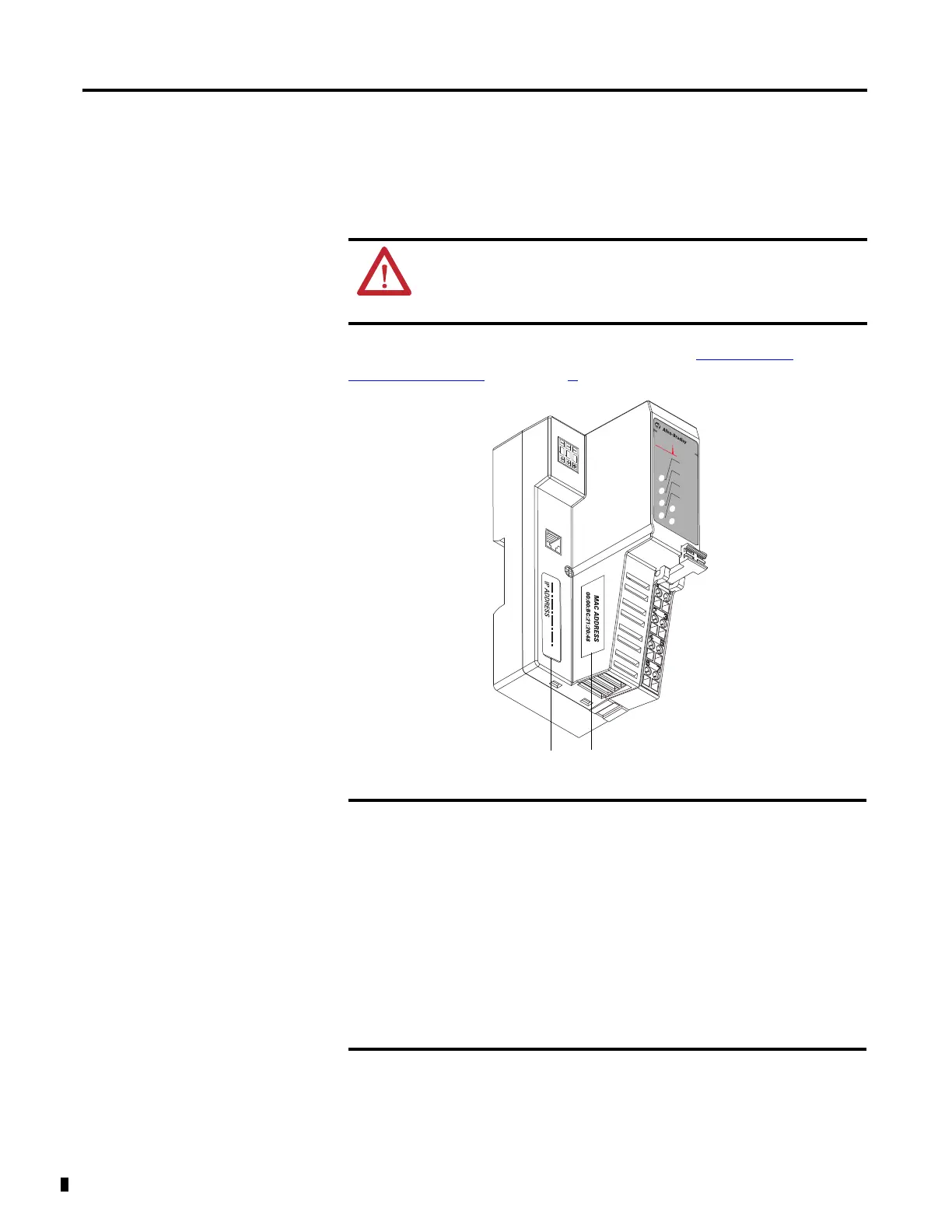

Module
Status
Network
Activity
Network
Status
Point Bus
Status
System
Power
Field
Power
POINT I O
1734-AENT Series B
02
0
IP address
Ethernet address (MAC)
43519
