Adapter Web Dialogs Appendix B

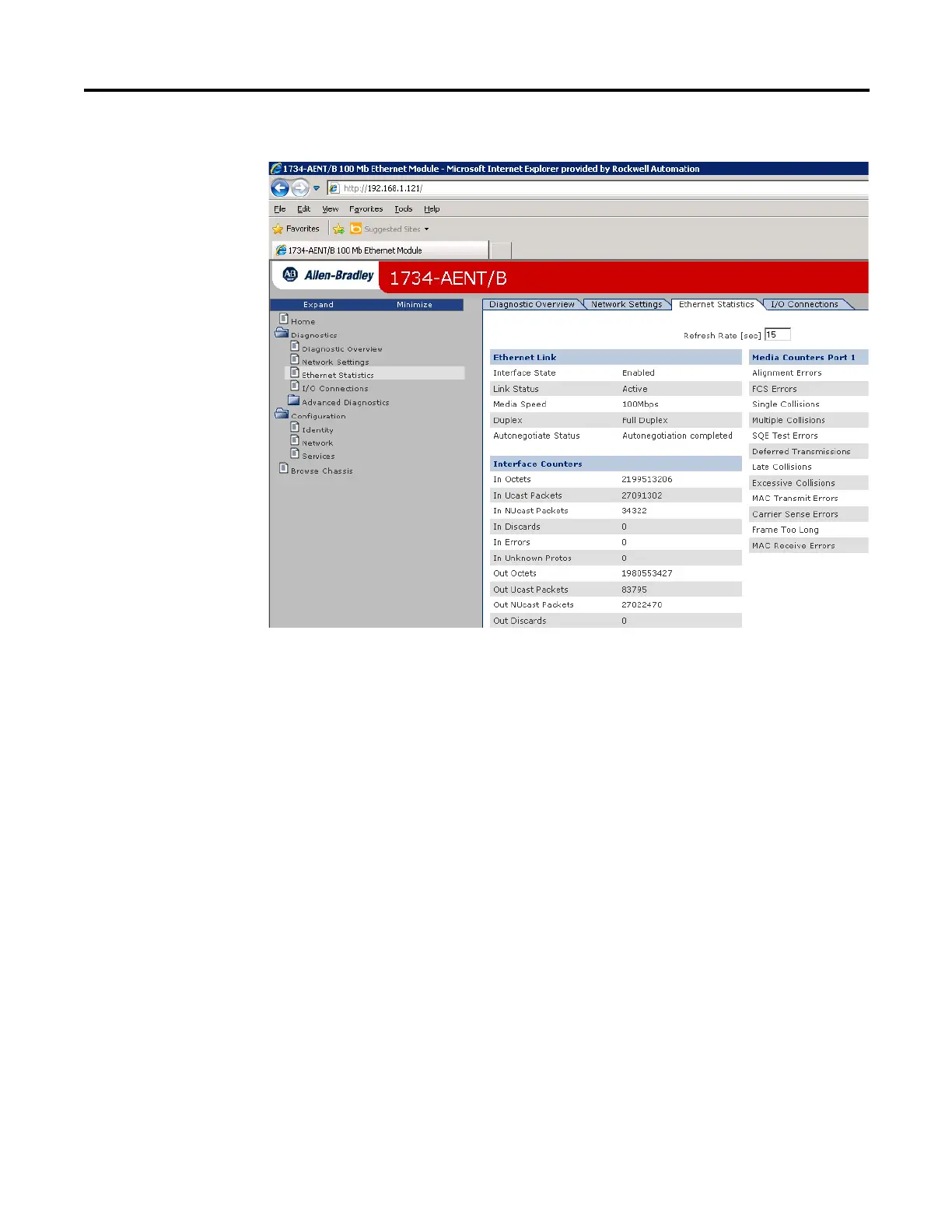

The Ethernet Statistics page opens.
2. From the Ethernet Statistics page, view the following:
• Ethernet Link
– Media Speed, Half or Full Duplex, Autonegotiate Status
• Interface Counters
– In Octets, In UCast Packets, In NUcast Packets,
In Discards, In Errors, In Unknown Protos,
Out Octets, Out Ucast Packets, Out NUcast Packets,
Out Discards, Out Errors
• Media Counters
– Alignment Errors
– FCS Errors
– Single Collisions
– Multiple Collisions
– SQE Test Errors
– Deferred Transmissions
– Late Collisions
– Excessive Collisions
– MAC Transmit Errors
– Carrier Sense Errors
– Frame Too Long
– MAC Receive Errors
To Next Page
