Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software Chapter 5

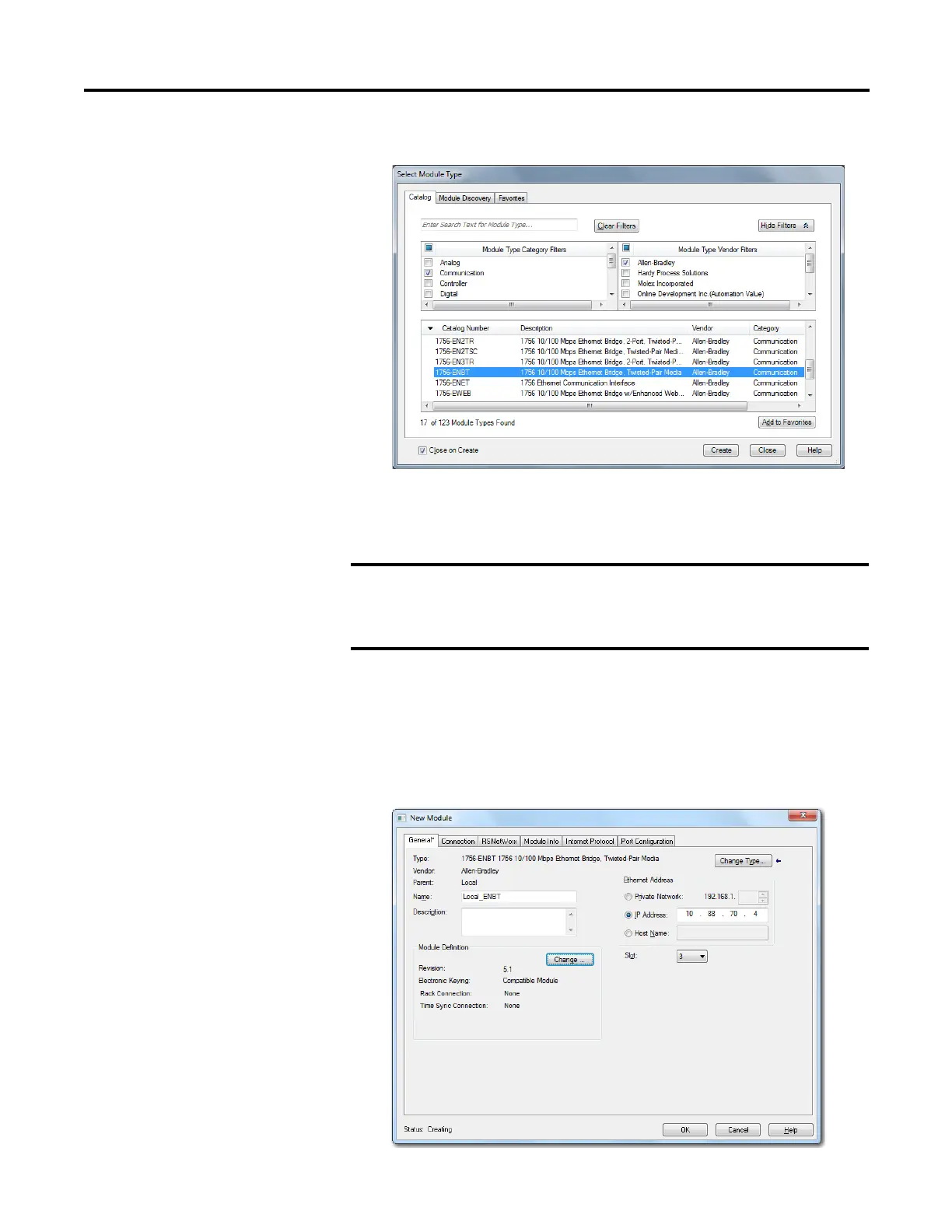

The Select Module Type dialog opens.
2. Select the appropriate Module Type filter Category (for the example we
selected Communication), and Module Type Vendor (for the example we
selected Allen-Bradley).
Note: to select only one category you will need to unselect those already
selected.
3. From the list of adapters displayed, select the 1756-ENBT EtherNet/IP
Bridge and click Create.
The New Module dialog opens.
In the Select Module Type dialog, you have options to search for a
specific module, add modules to a Favorites list, filter by Category
and/or Vendor, Hide and Show Filters, use Module Discovery, sort by
vendor, or access your Favorites list.
