Chapter 5 Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software

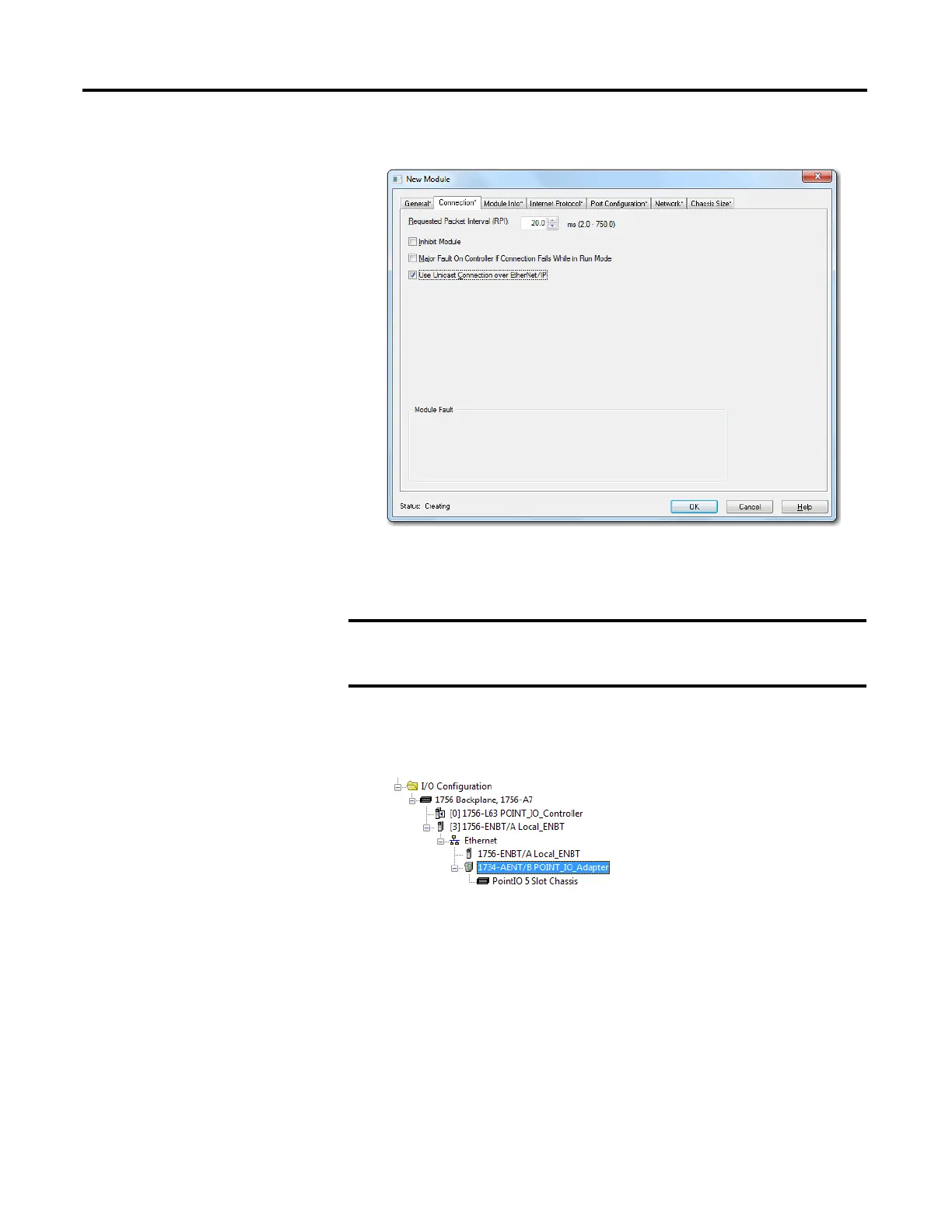

9. In the New Module screen select the Connection Tab.
10. Verify that the Requested Packet Interval (RPI) used for the rack-
optimization connection to the I/O modules is appropriate for your
system (20.0 ms for this example). If not, change it to the correct value.
11. Click OK to accept the configuration.
The 1734-AENT/B adapter appears indented under the local
1756-ENBT bridge module in the I/O Configuration folder.
To avoid overloading the adapter, it is recommended that the RPI be
no less than 10.0 ms for rack-optimization and enhanced rack-
optimization connections, and 50.0 ms for direct connections.
