Allen-Bradley 1734 User Manual

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 73
Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software Chapter 5

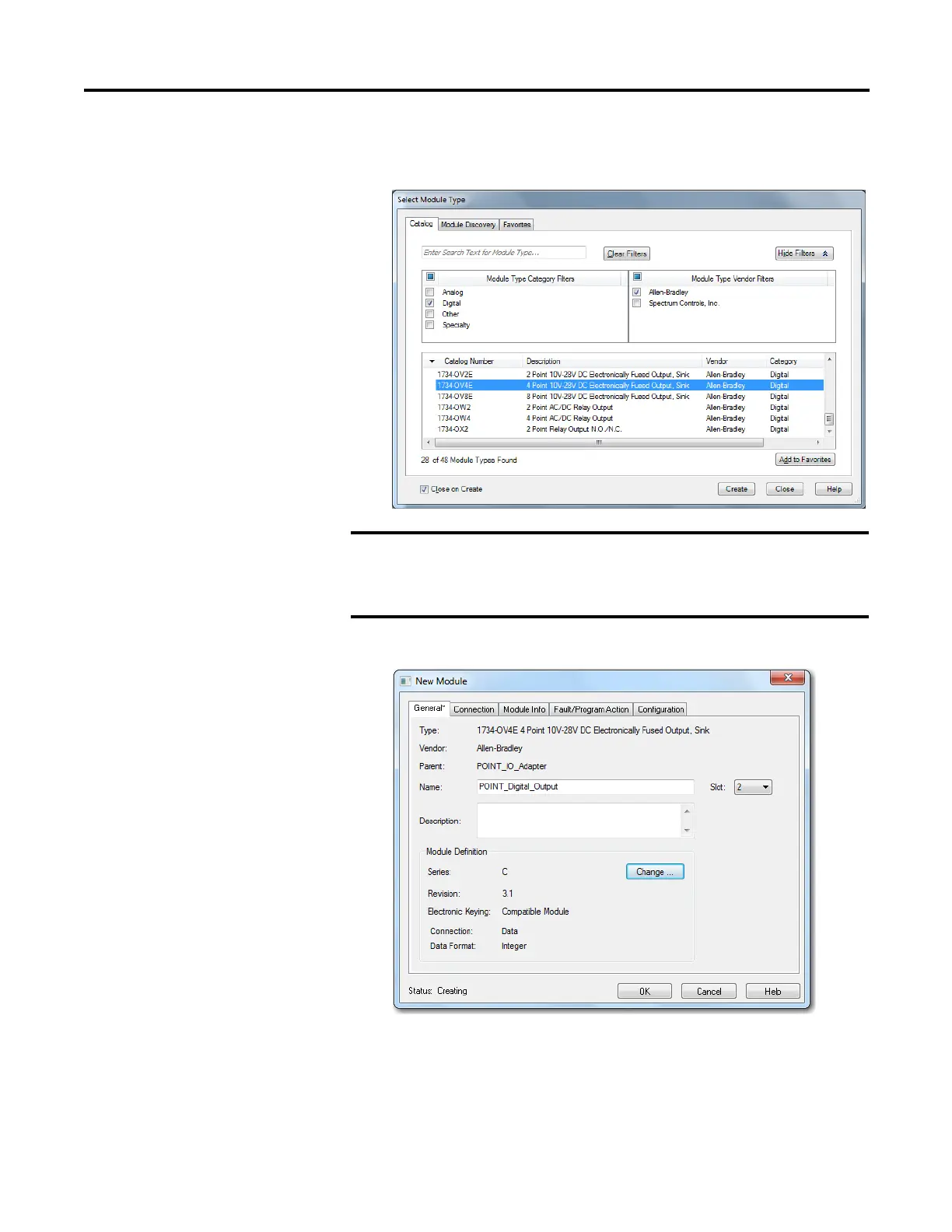

3. From the modules listed select the 1734-OV4E/C Digital Sink Output
module and click Create.
The New Module dialog opens.
4. From the New Module dialog, complete the following:
– Enter a value for Name.
– Enter a value for Slot.
TIP
In the Select Module Type dialog, you have options to search for a
specific module, add modules to a Favorites list, filter by Category
and/or Vendor, Hide and Show Filters, use Module Discovery, sort by
vendor, or access your Favorites list.

Allen-Bradley 1734 Specifications

General

Product Type	POINT I/O Adapter
Mounting	DIN Rail
Communication	EtherNet/IP
Operating Voltage	24V DC
Operating Temperature	-20°C to 55°C
Relative Humidity	5% to 95% (non-condensing)
Housing Material	Plastic
