Chapter 5 Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software

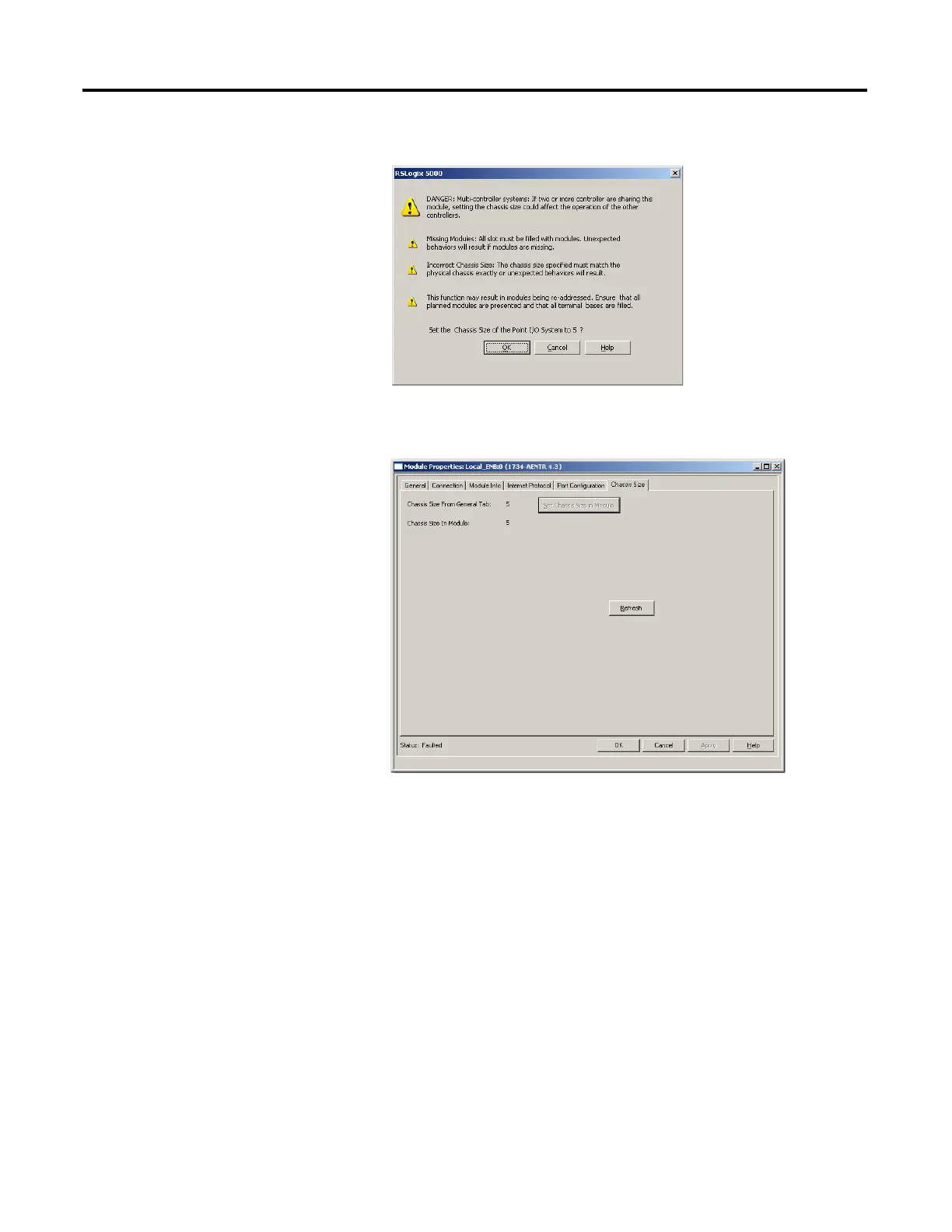

7. Read and acknowledge the warning dialog.
8. Click OK to continue.
9. Notice the chassis size in the module is modified to 5.
10. Click OK.
At this point, your POINTBus status LED should be solid green. All the
yellow triangles in your I/O configuration should be gone.
11. Click OK to close the dialog.
12. Click File  Save to save the project.

Allen-Bradley 1734 Specifications

General

Product Type	POINT I/O Adapter
Mounting	DIN Rail
Communication	EtherNet/IP
Operating Voltage	24V DC
Operating Temperature	-20°C to 55°C
Relative Humidity	5% to 95% (non-condensing)
Housing Material	Plastic
