Allen-Bradley 1756-M02AS Installation Instructions

SSI Servo Module 17
Publication
1756-IN595A-EN-P - March 2004

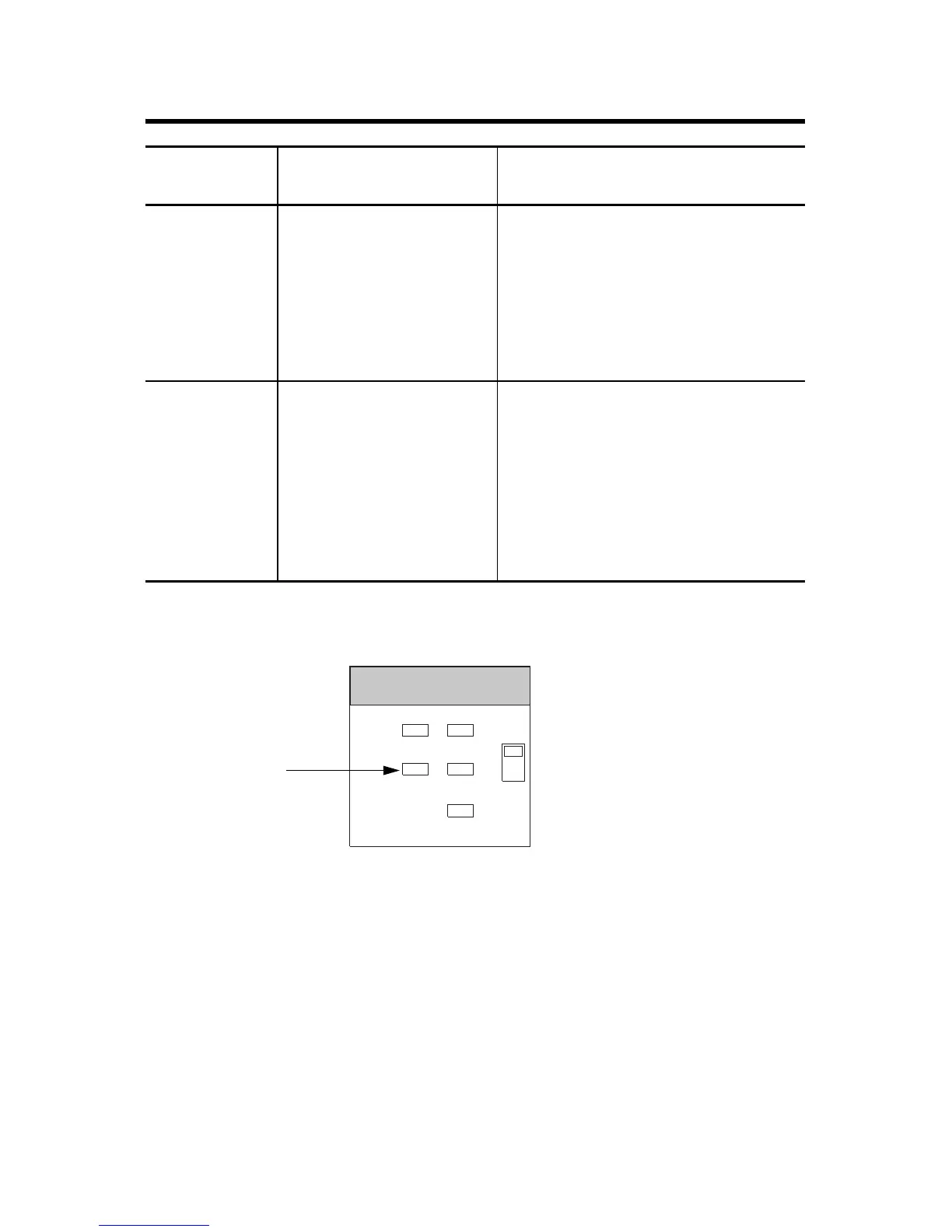

Module Status Using the DRIVE Indicator
Figure 15 Drive Indicator LED
Flashing red
light
The axis servo loop error
tolerance has been
exceeded.
• Correct the source of the
problem.
• Clear the servo fault condition
using the Motion Axis Fault
Reset instruction.
• Resume normal operation.
Steady red light An axis SSI feedback fault
has occurred.
• Correct the source of the
problem by checking the SSI
device and power connections.
• Clear the servo fault condition
using the Motion Axis Fault
Reset instruction.
• Resume normal operation.
If the FDBK
LED displays:
The module status is: Take this action:
CH0 CH1
FDBK
DRIVE
OK
2 AXIS SERVO / SSI
FDBK
DRIVE
Drive
indicators
