PanelView 550 Terminals 9
40061-325-01(D)

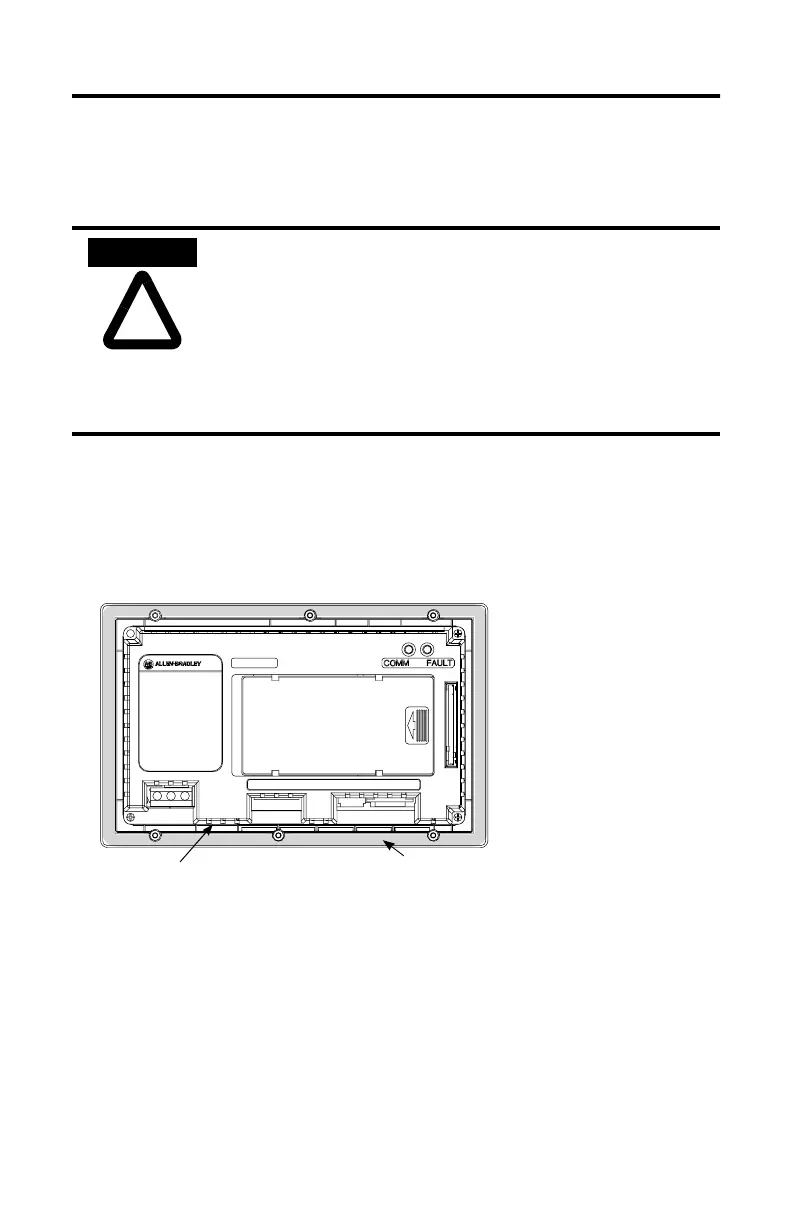

Installing Terminal in a Panel
To install the PV500 terminal in a panel:
1. Cut an opening in the panel using the panel cutout provided with the terminal.
Remove sharp edges or burrs.
2. Make sure the sealing gasket is properly positioned on the terminal (as shown
below). This gasket forms a compression type seal. Do not use sealing
compounds.
3. Verify that the ends of the legend strips are secured with the legend strip
adhesive.
4. Place the terminal in the panel cutout.
• Disconnect all electrical power from the panel before
making the cutout.
• Make sure the area around the panel cutout is clear.
• Take precautions so that metal cuttings do not enter any
components that may already be installed in panel.
• Failure to follow this warning may result in personal injury
or damage to the panel components.
Sealing GasketLegend Strip
Adhesive Tape
