PanelView 550 Terminals 13
40061-325-01(D)
3. Apply power to the terminal.

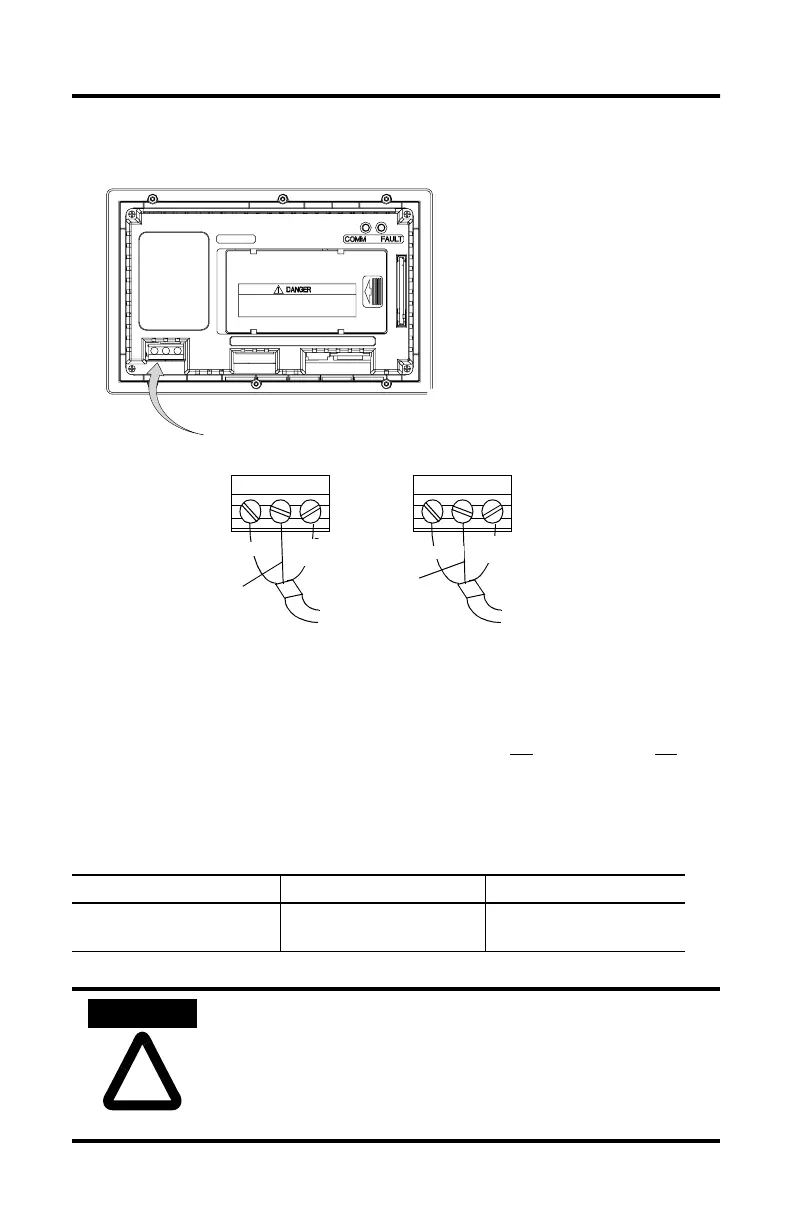

Connecting DC Power
The L1 and L3 versions (e.g., Catalog No. 2711-K5A1L1 or 2711-K5A1L3) of
the PV550 terminals connect to a 24V dc power source.
The table below shows the electrical ratings for the DC versions of the terminals.
Electronic circuitry and an internal fuse protect the terminals from reverse
polarity and over-voltage conditions
Terminal Type Supply Voltage Power Consumption
PV550 18 to 30V dc,
(24V dc nominal)
12 Watts maximum
(0.5 Amps @ 24V dc)
• Do not connect the PanelView terminal to an AC power
source. Connecting to an AC power source may damage
the terminal.
• The PanelView 550 terminal is designed for safe use when
installed in a suitably rated NEMA Type 12, 13, 4X (indoor
use only), IP54 or IP65 enclosure.
L1
L2
White
(Neutral)
Green
(Earth Ground)
L1
L2
Black (Line)
Brown (Line)
Green
(Earth Ground)
Green/Yellow
(Protective Earth)
Blue
(Neutral)
120/240V ac, 3 Wire,
U.S. Color Code
120/240V ac,
3 Wire, European
Harmonized Color Code
Power Terminal Block (fixed)
To Power Source
To Power Source
GND GND
To Next Page
