PanelView 600 Terminals 11
41061-004-01(D)
Installing the Memory Card
The memory card retainer is required for UL508 installations where a memory
card is inserted in the card slot. The retainer protects against Electrostatic
Discharge (ESD) up to 15KV and prevents accidental removal of a memory card
in high vibration environments.
To attach the memory card retainer:
1. Secure the base of the retainer over the existing memory card slot using the
two screws provided. Tighten screws to a torque of 6 to 8 inch lbs (.7 to .9
N•m).
2. Insert the memory card and install the retainer until it is properly seated.
3. To remove the retainer, press the tabs on each side and pull.

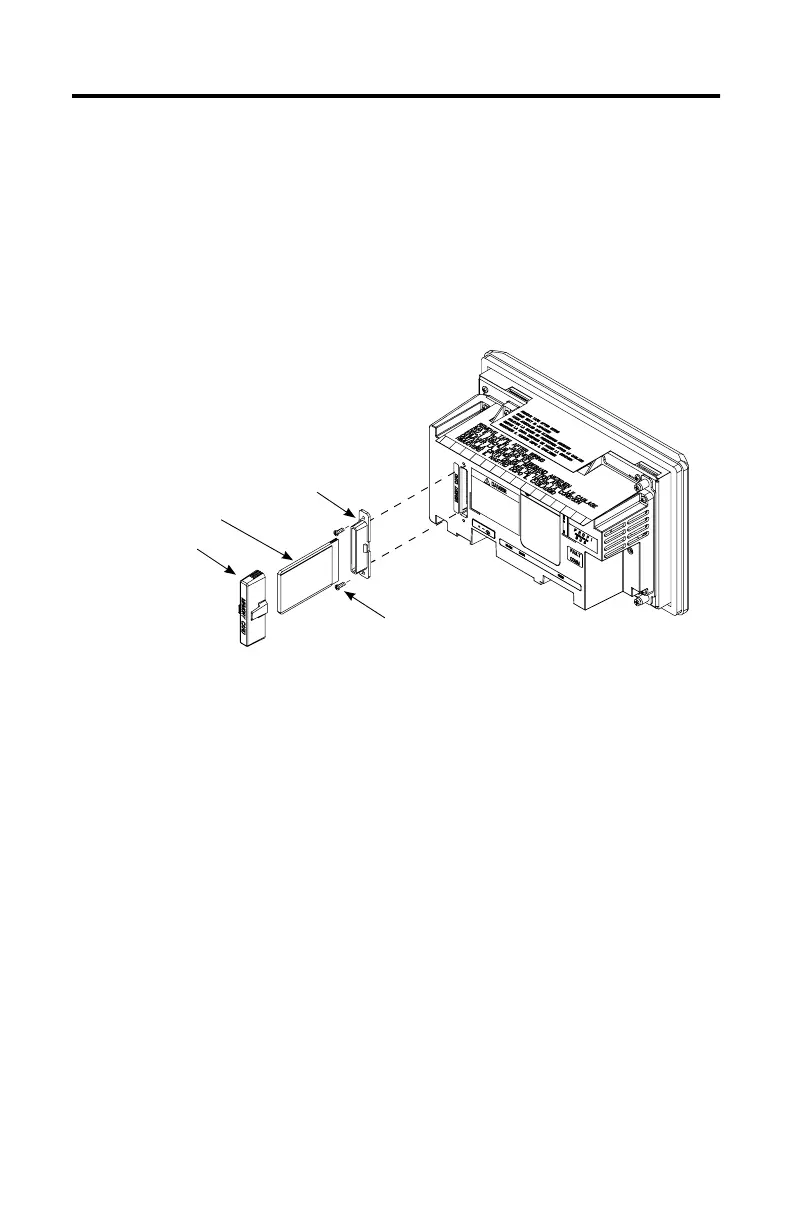

Retainer Base
Memory Card
Retainer
Base Mounting Screws
