Allen-Bradley 2711-K6C series User Manual

PanelView 600 Terminals 13
41061-004-01(D)
3. Apply power to the terminal.
Connecting DC Power
The L1 versions of the PanelView 600 terminal (Catalog No. 2711-K6C1L1,
-B6C1L1) connect to a 24V dc power source.
The electrical ratings for the PanelView 600 are shown below. Electronic
circuitry and an internal fuse protect the terminal from reverse polarity and over–
voltage conditions.
Terminal Type Supply Voltage Power Consumption
PV600 18 to 32V dc,
(24V dc nominal)
34 Watts maximum
(1.9 Amps @ 24V dc)
!
ATTENTION
• Do not connect the PanelView terminal to an AC power
source. Connecting to an AC power source may damage
the terminal.
• The PanelView 600 terminal is designed for safe use when
installed in a suitably rated NEMA Type 12, 13, 4X (indoor
use only), IP54 or IP65 enclosure.

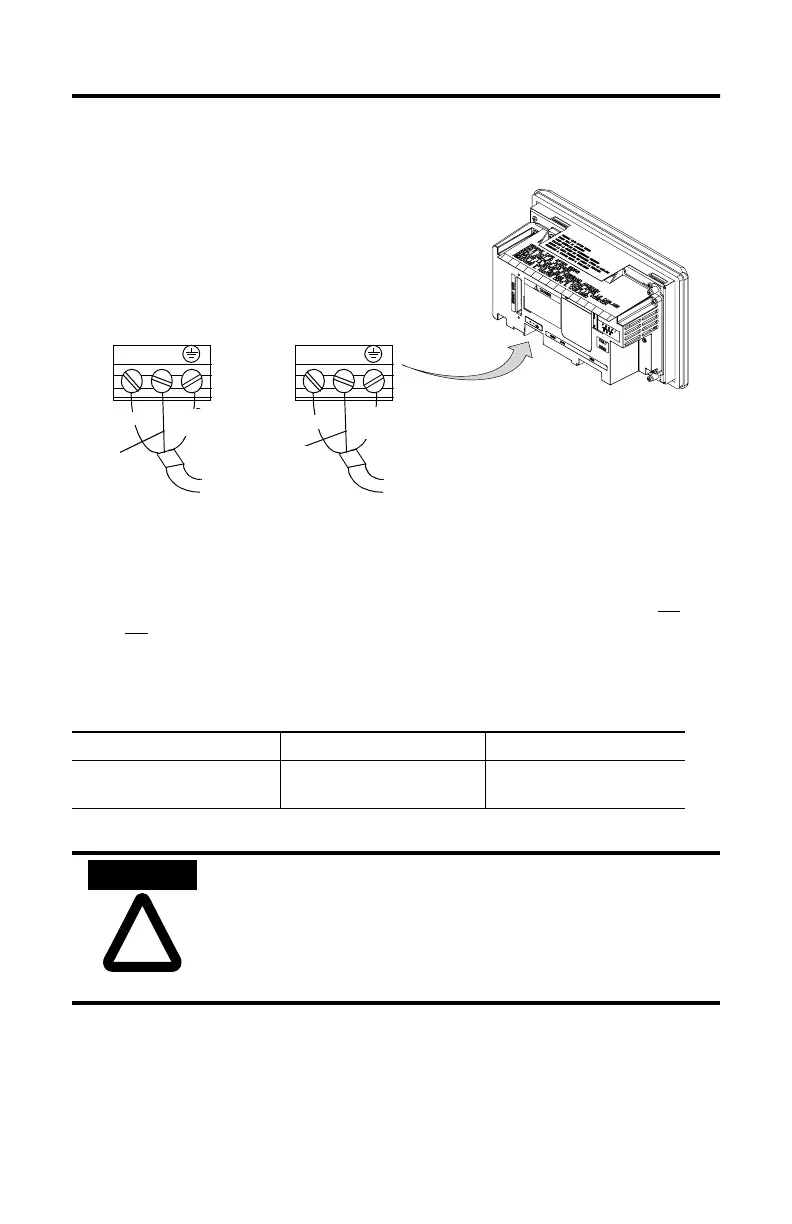

L1
L2
Black (Line)
White
(Neutral)
Green
(Earth Ground)
L1
L2
Brown (Line)
Green
(Earth Ground)
Green/Yellow
(Protective Earth)
Blue
(Neutral)
120/240V ac, 3 Wire,
U.S. Color Code
120/240V ac,
3 Wire, European Harmonized
Color Code
Power Terminal
Block (fixed)
To Power Source
To Power Source
