14 PanelView 600 Terminals
41061-004-01(D)

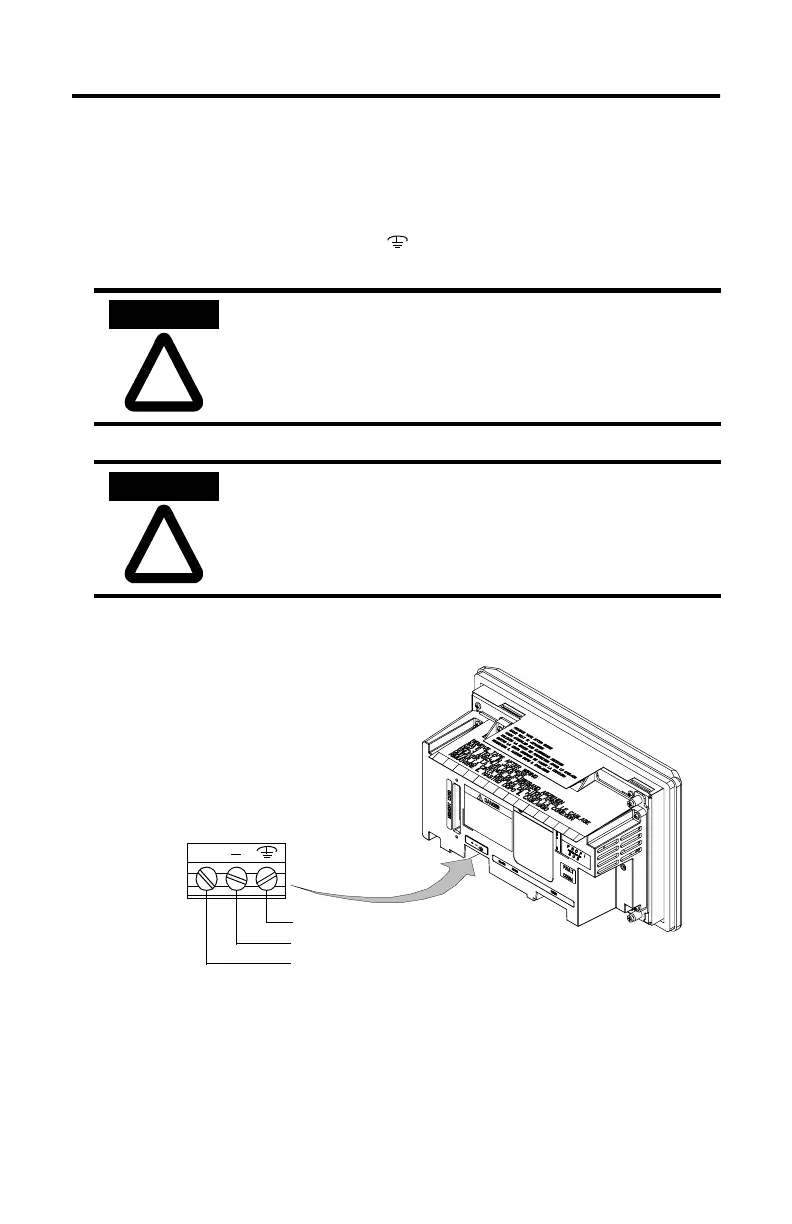

To connect DC power to the PV600 terminal:
1. Secure the DC power wires to the DC Negative and DC Positive screws on the
terminal block.
2. Secure the Earth Ground wire to the screw on the terminal block.
3.
4. Apply 24V dc power to the terminal.
Explosion Hazard - Do not connect or disconnect
equipment while circuit is live unless area is known to be
non-hazardous.
Do not apply power to the terminal until all wiring
connections have been made. Failure to do so may result in
electrical shock.
+
Earth Ground
DC Negative
DC Positive
Power Terminal
Block (fixed)
