Mounting Dimensions
Cutout Dimensions

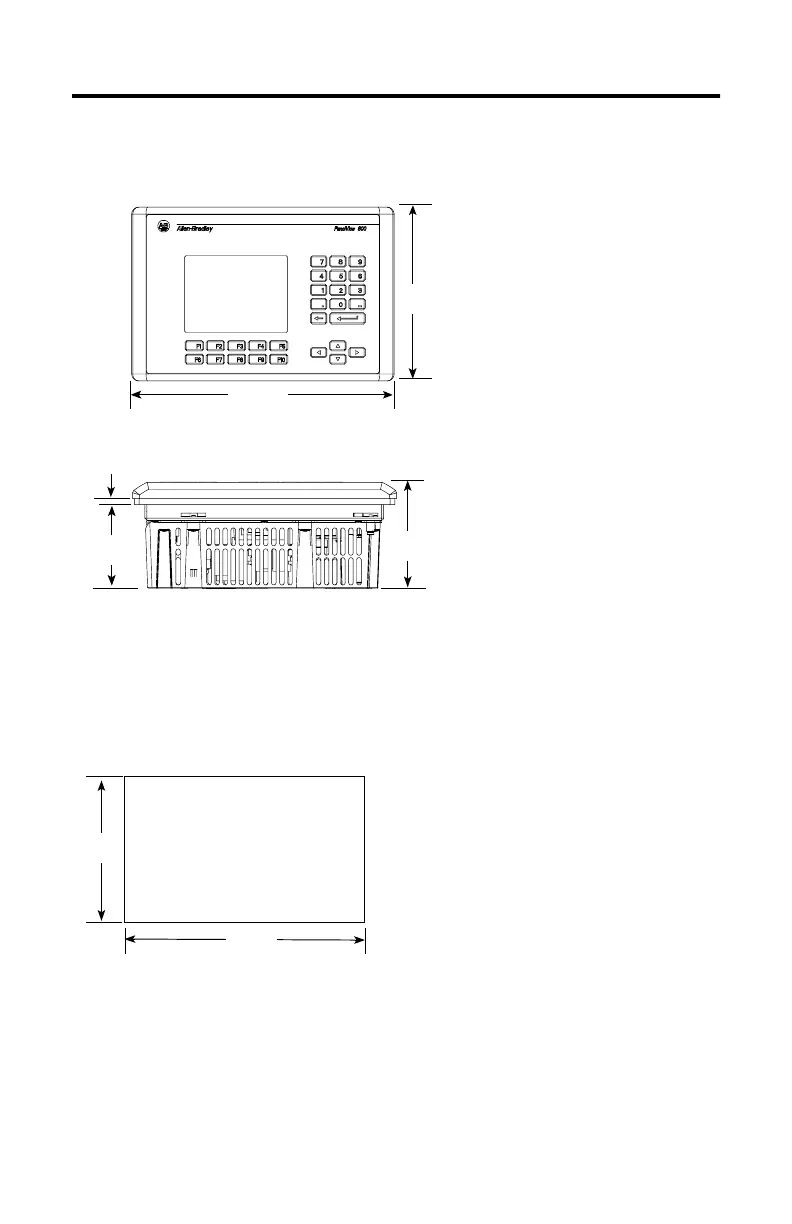

Use the full size template shipped with the terminal to mark the cutout
dimensions. The figure below shows a reduced size cutout.
192 mm
(7.55 in)
290 mm
(11.40 in)
116 mm
(4.57 in)
91 mm
(3.60 in)
6.9 mm
(0.27 in)
Top View
167 mm
(6.57 in)
264 mm
(10.39 in)
Recommended Panel
Cutout Dimensions
PanelView 600 Terminals
