114 Rockwell Automation Publication 5000-UM005B-EN-P - November 2015
Chapter 7 Calibrate the Module

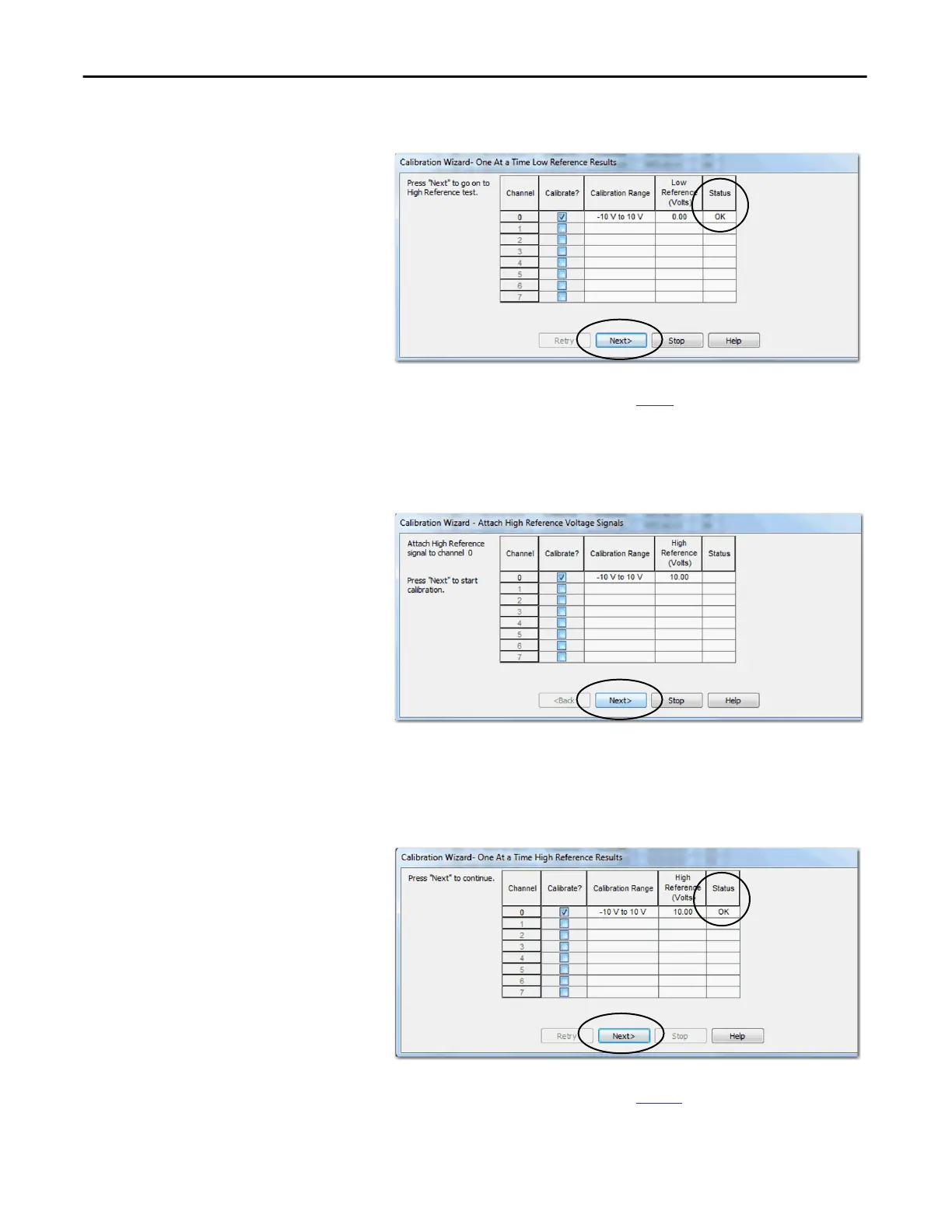

9. If the status is OK, click Next.
If the status reports an error, return to
step 7 until the status is OK.
10. When the Attach High Reference Voltage Signals dialog box appears, set
the calibrator to the high reference and apply it to the module.
11. Click Next.
The One at a Time High Reference Results dialog box appears and
indicates the status of the channel after applying the low reference.
12. If the status is OK, click Next.
If the status reports an error, return to
step 10 until the status is OK.
13. When the Calibration Completed dialog box appears, click Finish.
