Publication 1756-UM001G-EN-P - January 2007
16 Directly Connect to the Controller via the Serial Port
2. Connect the cable to the controller and to your workstation.
TIP
I

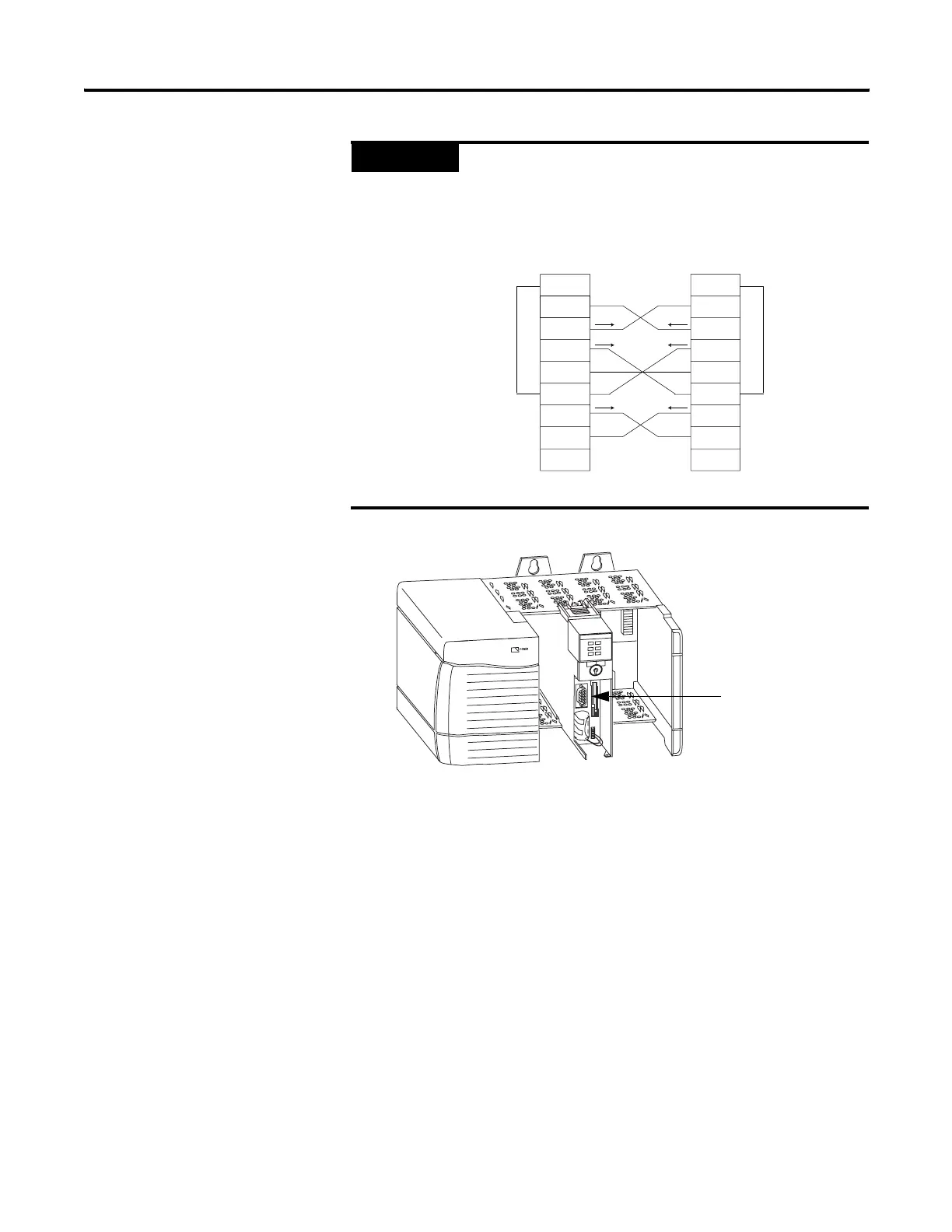

If you make your own serial cable:
• Limit the length to 15.2m (50 ft).
• Wire the connectors this way.
• Attach the shield to both connectors.
2 RDX
3 TXD
4 DTR
COMMON
6 DSR
7 RTS
8 CTS
9
1 CD
2 RDX
3 TXD
4 DTR
COMMON
6 DSR
7 RTS
8 CTS
9
1 CD
Workstation Controller
CP3 Cable
