108 Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019

Chapter 5 Configure Integrated Motion Using a PowerFlex 755 Drive

Configure Digital Outputs

Use the Digital Outputs tab to enter digital output values for the drive module.

The Digital Outputs tab applies only to PowerFlex 755 drives that are

configured with a Digital I/O card as a peripheral device. The appearance of

the Digital Outputs tab can vary dependent upon the peripheral device

configuration.

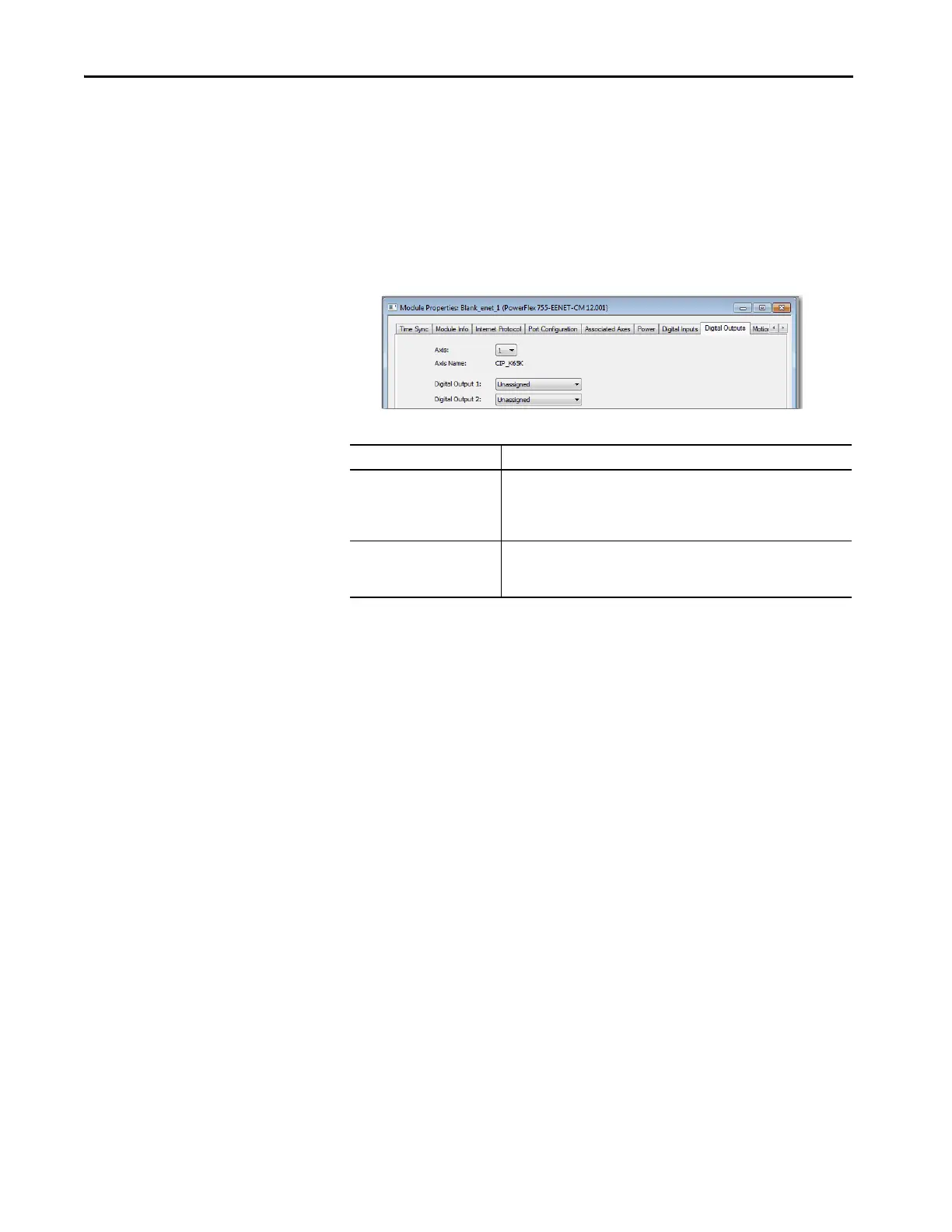

Figure 14 - Digital Outputs Tab for the PowerFlex 755 Drive

Table 32 - PowerFlex 755 Module Properties: Digital Outputs Tab Descriptions

Parameter Description

Digital Output 1 Choose one of these values for Digital Input 1:

• Unassigned

•Contactor Enable

• Mechanical Brake Engage

Digital Output 2 Choose one of these values for Digital Output 2:

• Unassigned

•Contactor Enable

Default Chapter3
