178 Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019

Chapter 8 Configuration Examples for a Kinetix Drive

5. Click the Motor Feedback dialog box.

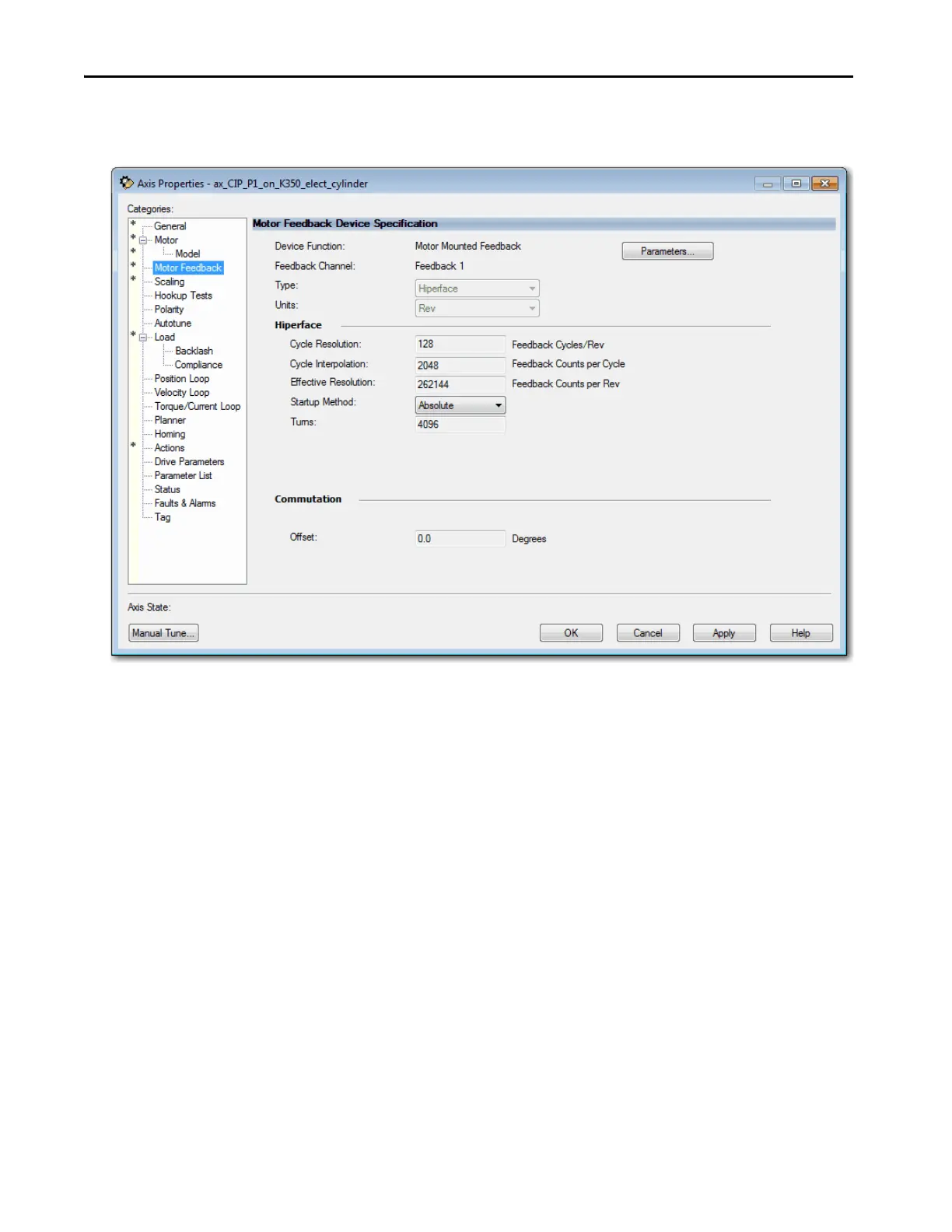

Figure 45 - Example 5: Position Loop with Motor Feedback, Motor Feedback Dialog Box

With this drive and motor combination, the data is automatically

populated based on that selection.
