Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 207

Axis Configuration Examples for the PowerFlex 755 Drive Chapter 9

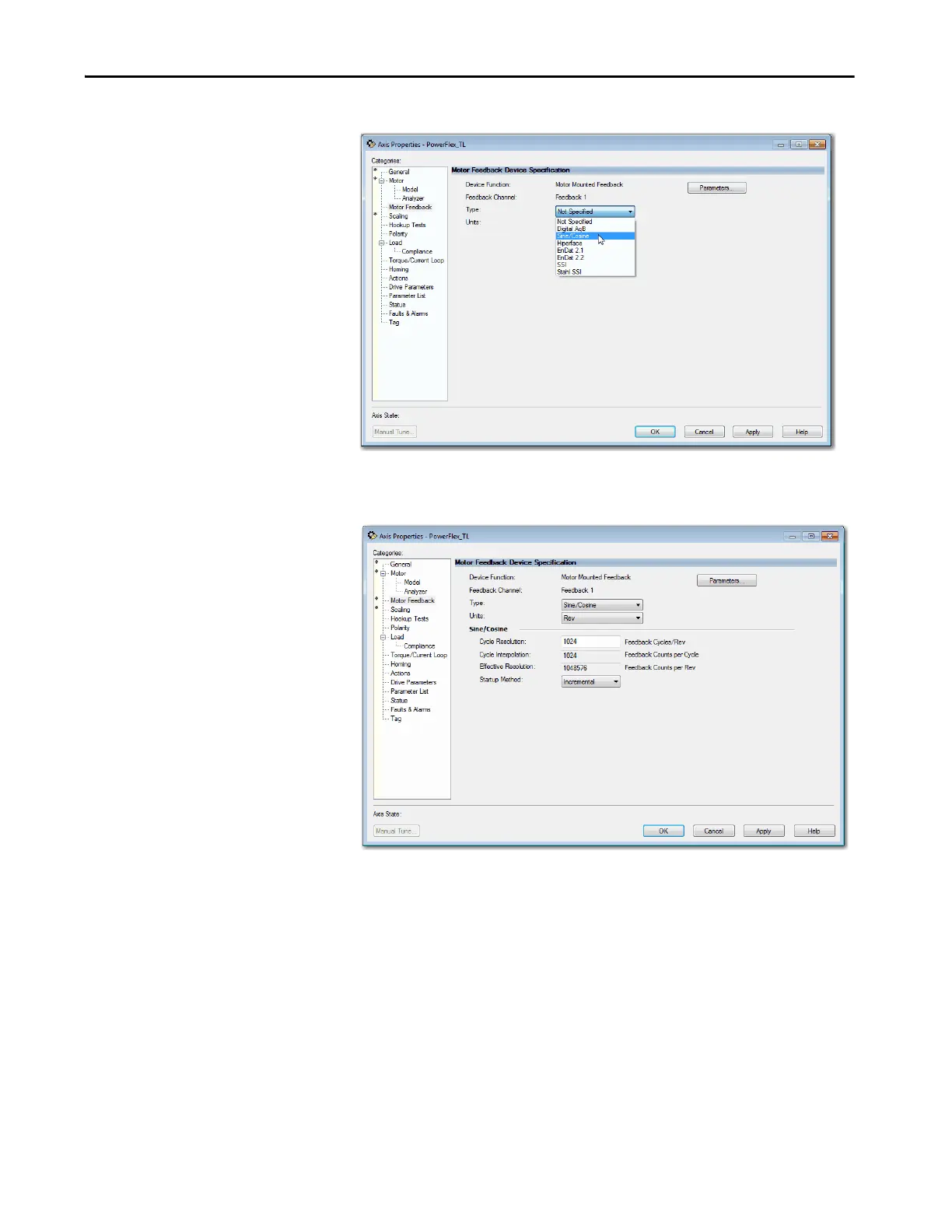

Figure 83 - Example 6: Torque Loop with Motor Feedback, Feedback Type

4. From the Type pull-down menu, choose the appropriate feedback type.

Figure 84 - Example 6: Torque Loop with Motor Feedback, Feedback Type
