Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 231

Commission an Axis Chapter 11

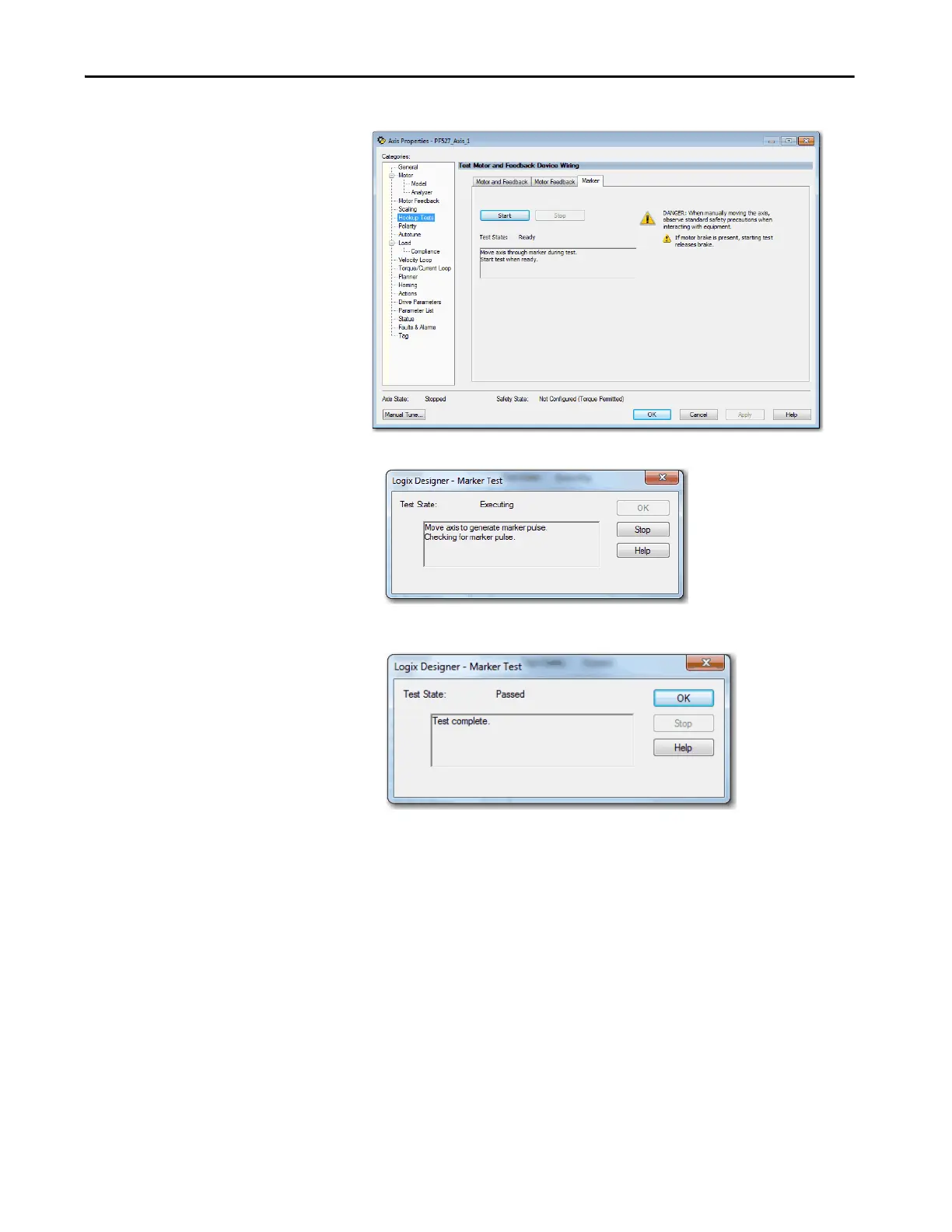

3. To check for the marker pulse, click Start.

4. Manually move the axis until you get the marker pulse.

The drive receives the marker pulse and the test passed.

5. Click OK.
