Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 43

Configure Integrated Motion Control Using Kinetix Drives Chapter 3

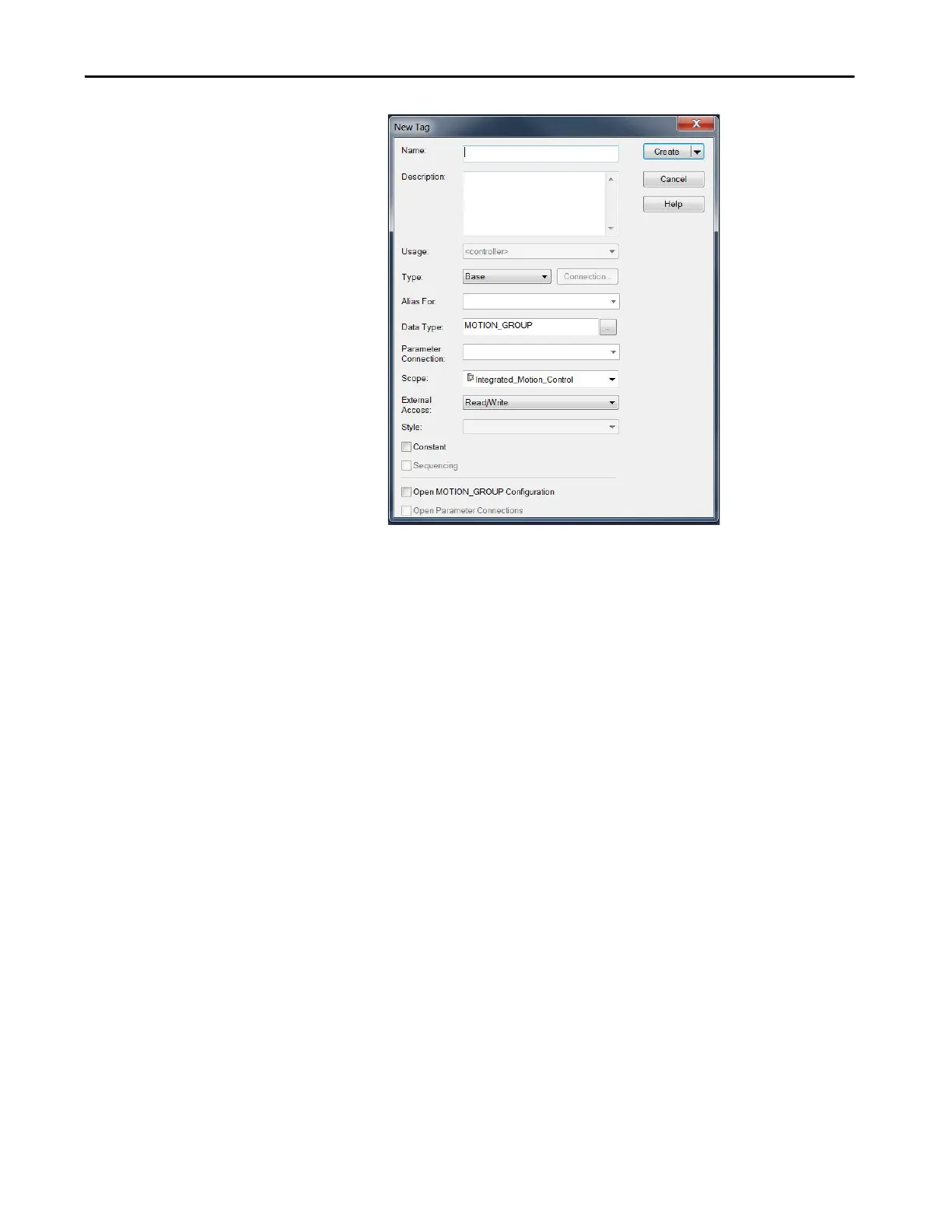

2. Type a Tag name.

3. Type a description, if desired.

4. Choose the Tag Type.

5. Choose the Scope.

6. Choose the External Access.

7. Click Create.

Your new motion group appears in the Controller Organizer under the

Motion Groups folder.

8. Right-click the new motion group and choose Properties.

The Motion Group Properties dialog box appears.
