56 Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019

Chapter 3 Configure Integrated Motion Control Using Kinetix Drives

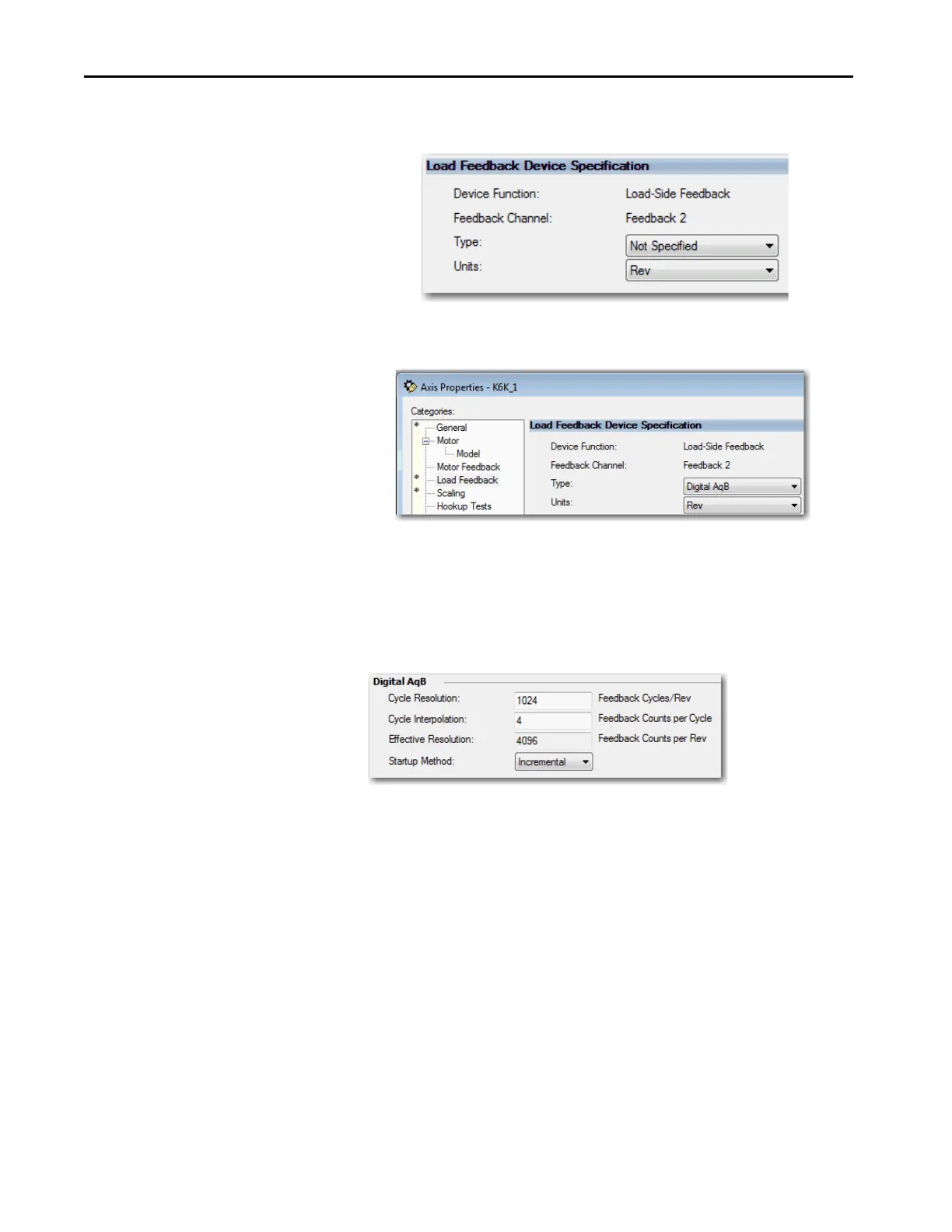

The Load Feedback category is available if the Feedback Configuration that is

specified on the General dialog box is Load or Dual.

Attributes that are associated with the Load Feedback category are designated

Feedback 2.

Unlike the Motor Feedback category, you must explicitly enter load feedback-

device information on the Load Feedback category, including the Feedback

Type. This entry is required because the Load Feedback device is not built into

the motor.

Default values are displayed based on the Feedback Type selected.
