Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 63

Configure Integrated Motion Control Using Kinetix 5700 Drives Chapter 4

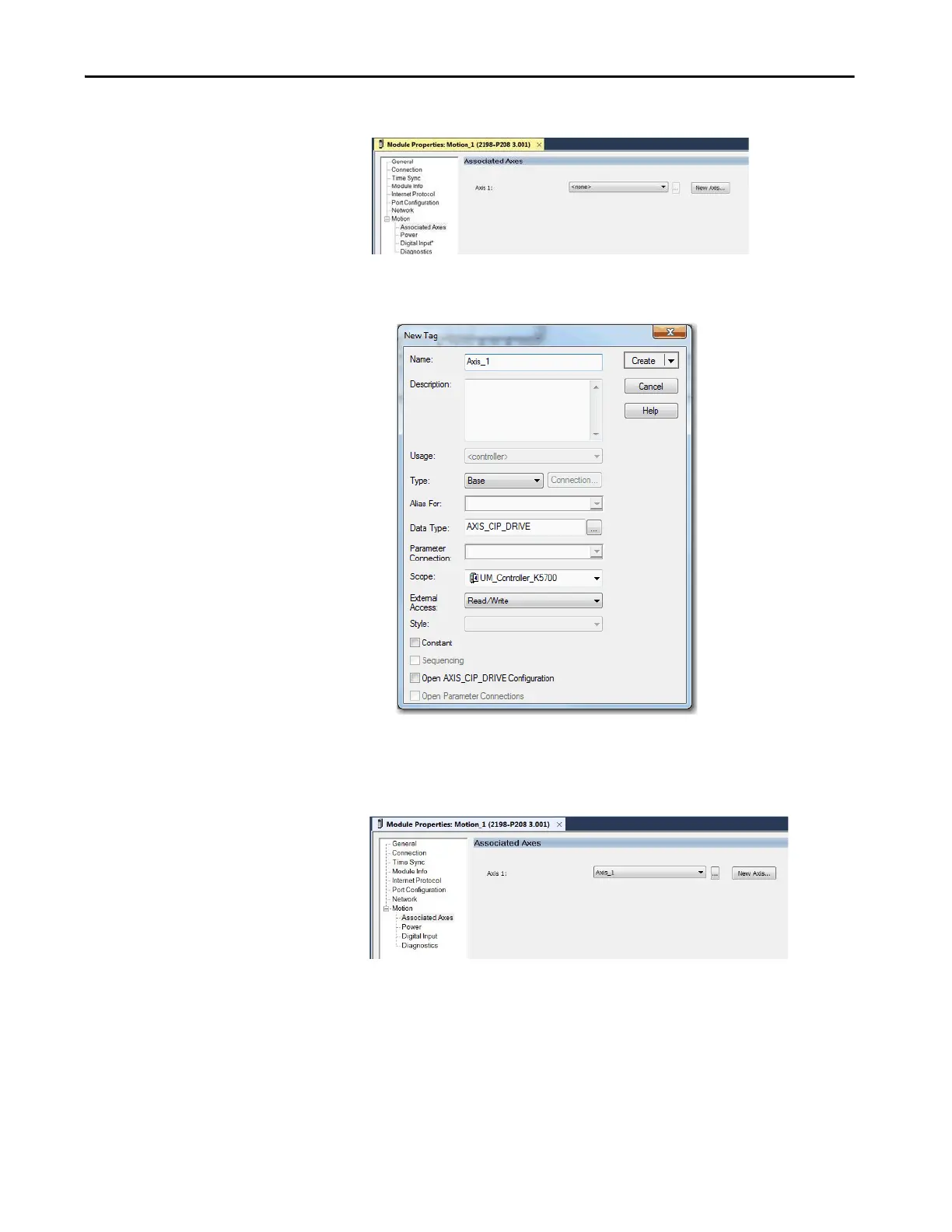

12. Click the Associated Axes category.

13. Click New Axis.

The New Tag dialog box appears.

14. Type the axis Name.

AXIS_CIP_DRIVE is the default Data Type.

15. Click Create.

16. Click Apply.
