Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 67
Configure Integrated Motion Control Using Kinetix 5700 Drives Chapter 4

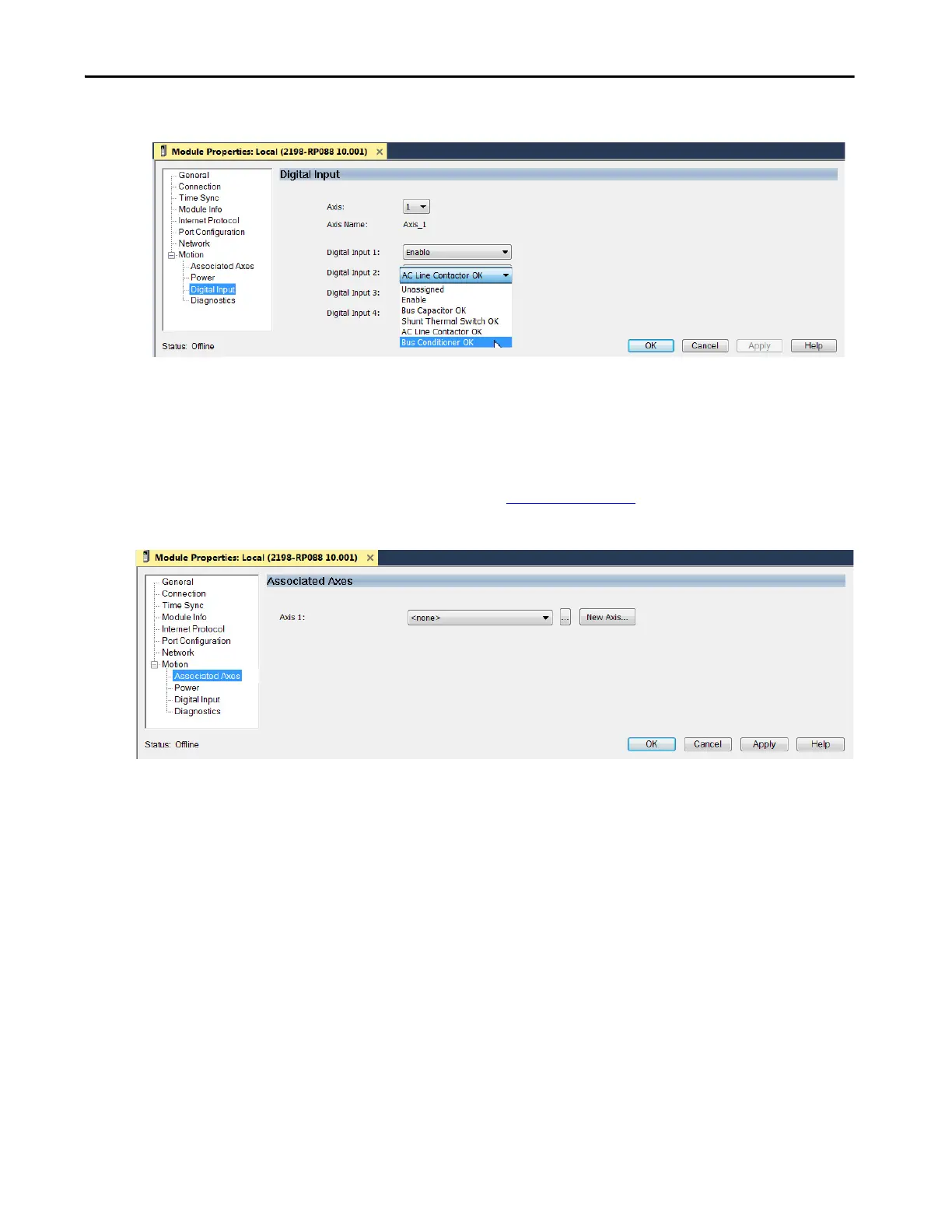

11. Click the Digital Input category.
12. From the Digital Input pull-down menu choose Bus Conditioner OK or
AC Line Contactor OK to monitor your DC-bus conditioner module
status or the M1 contactor status, respectively, depending on your
application.
In this example, Bus Capacitor OK is chosen. For descriptions of the
digital inputs, see Table 22 on page 79
.
13. Click the Associated Axes category.
14. Click New Axis.
