52 Rockwell Automation Publication 2099-UM001D-EN-P - December 2012
Chapter 3 Kinetix 7000 Connector Data

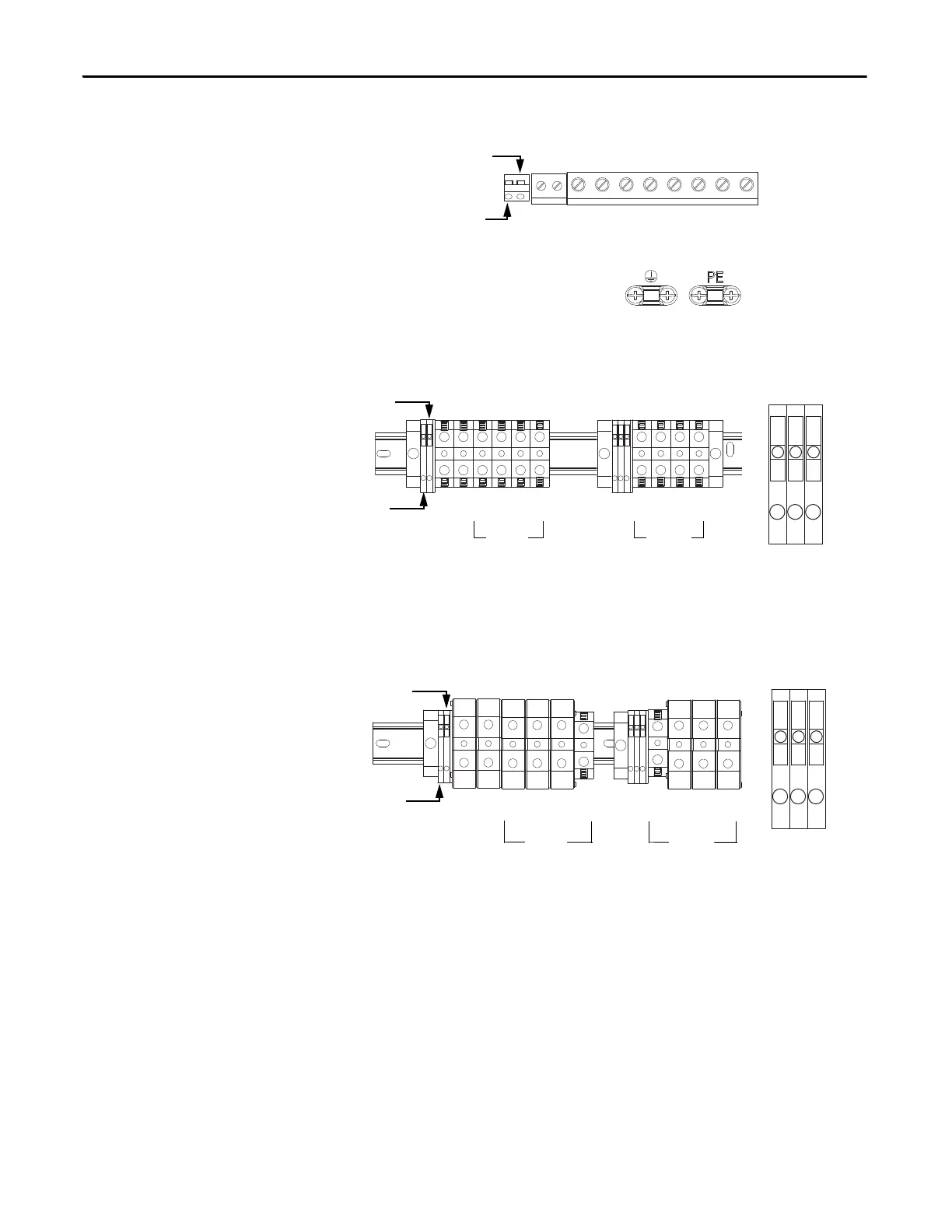

Figure 27 - 2099-BM06-S, 2099-BM07-S, and 2099-BM08-S
Figure 28 - 2099-BM09-S
Figure 29 - 2099-BM10-S
DC+
DC-
U
V
W
R (L1)
S (L2)
T (L3)
Cable clamps for
Motor and AC inputs.
PS+
PS-
NC
NC
DC+
DC-
U
V
W
PE
PE
R (L1)
S (L2)
T (L3)
PS+
PS-
Motor
FAN
AC Line
Fan Terminals
Enlarged View
0 VAC
120 VAC
240 VAC
Fan Terminals
Enlarged View
PS+
PS-
0 VAC
120 VAC
240 VAC
DC+
DC-
U
V
W
PE
PE
R (L1)
S (L2)
T (L3)
FAN
Motor AC Line
