Allen-Bradley LOGIX 5000 Programming Manual

Chapter 1
Design a sequential function chart
24 Rockwell Automation Publication 1756-PM006I-EN-P - February 2018
To Use this structure With these considerations
Loop back to a previous step
Wire to a previous step on page 27
• Connect the wire to the step or simultaneous branch to
which you want to go.
• Do not wire into, out of, or between a simultaneous
branch.

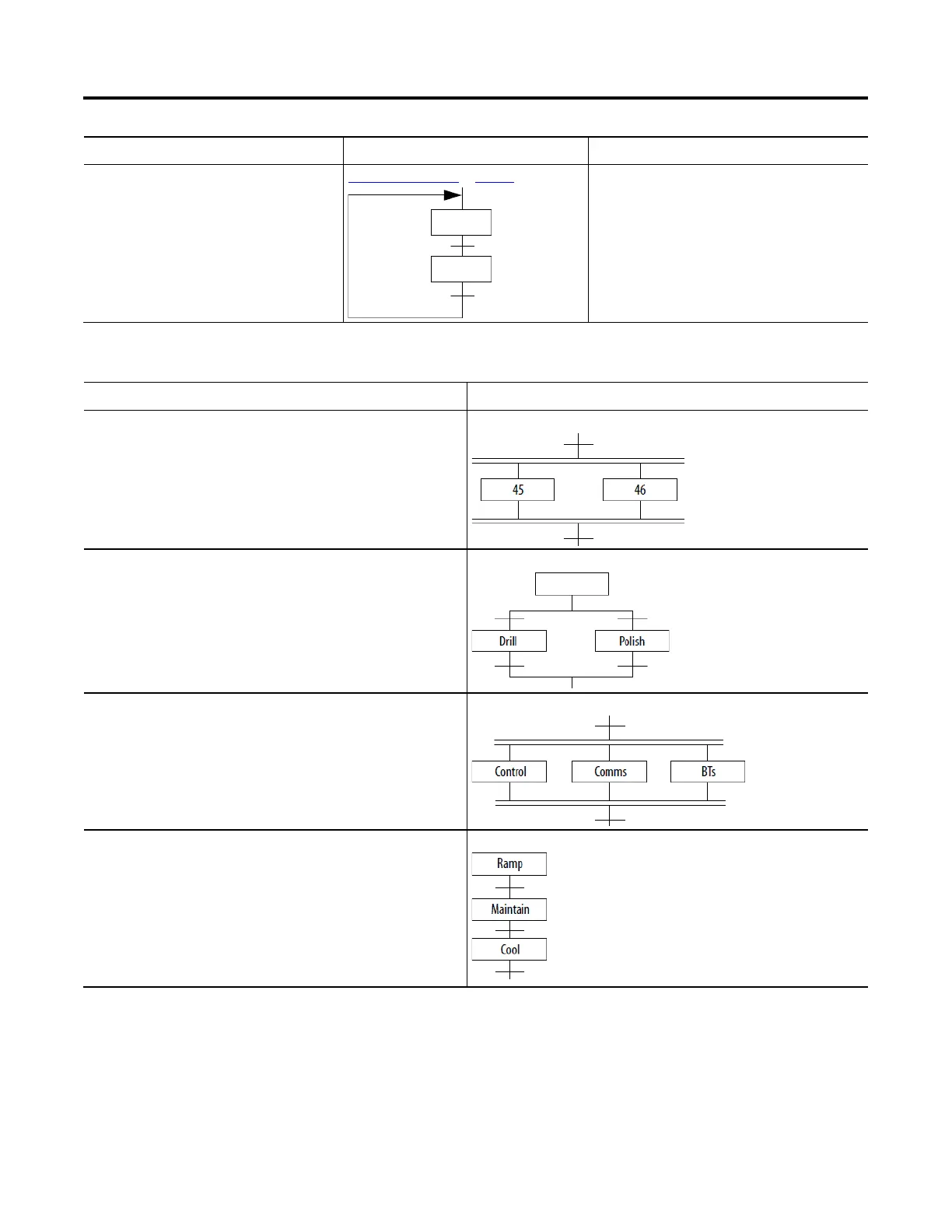

Here are some examples of SFC structures for different situations.
Example situation Example solution
Station 45 and 46 of an assembly line work on parts simultaneously. When both
stations are done, the parts move down 1 station.
Simultaneous Branch
Depending on the build code, a station either drills or polishes. Selection Branch
To simplify my programming, I want to separate communications and block transfers
from other control logic. All occur at the same time.
Simultaneous Branch
In a heat treating area, the temperature ramps up at a specific rate, maintains that
temperature for a specific duration, and then cools at a specific rate.
Sequence

Allen-Bradley LOGIX 5000 Specifications

General

Controller Type	Programmable Automation Controller (PAC)
Communication Protocols	EtherNet/IP, ControlNet, DeviceNet
Programming Software	Studio 5000
Programming Languages	Ladder Logic, Structured Text, Function Block Diagram, Sequential Function Chart
Supported I/O	Analog
Power Supply	24V DC, 120/240V AC (depending on module)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Redundancy	Supported with specific modules and configurations
Certifications	UL, CE
