Allen-Bradley LOGIX 5000 Programming Manual

Design a sequential function chart
Chapter 1
Rockwell Automation Publication 1756-PM006I-EN-P - February 2018 25

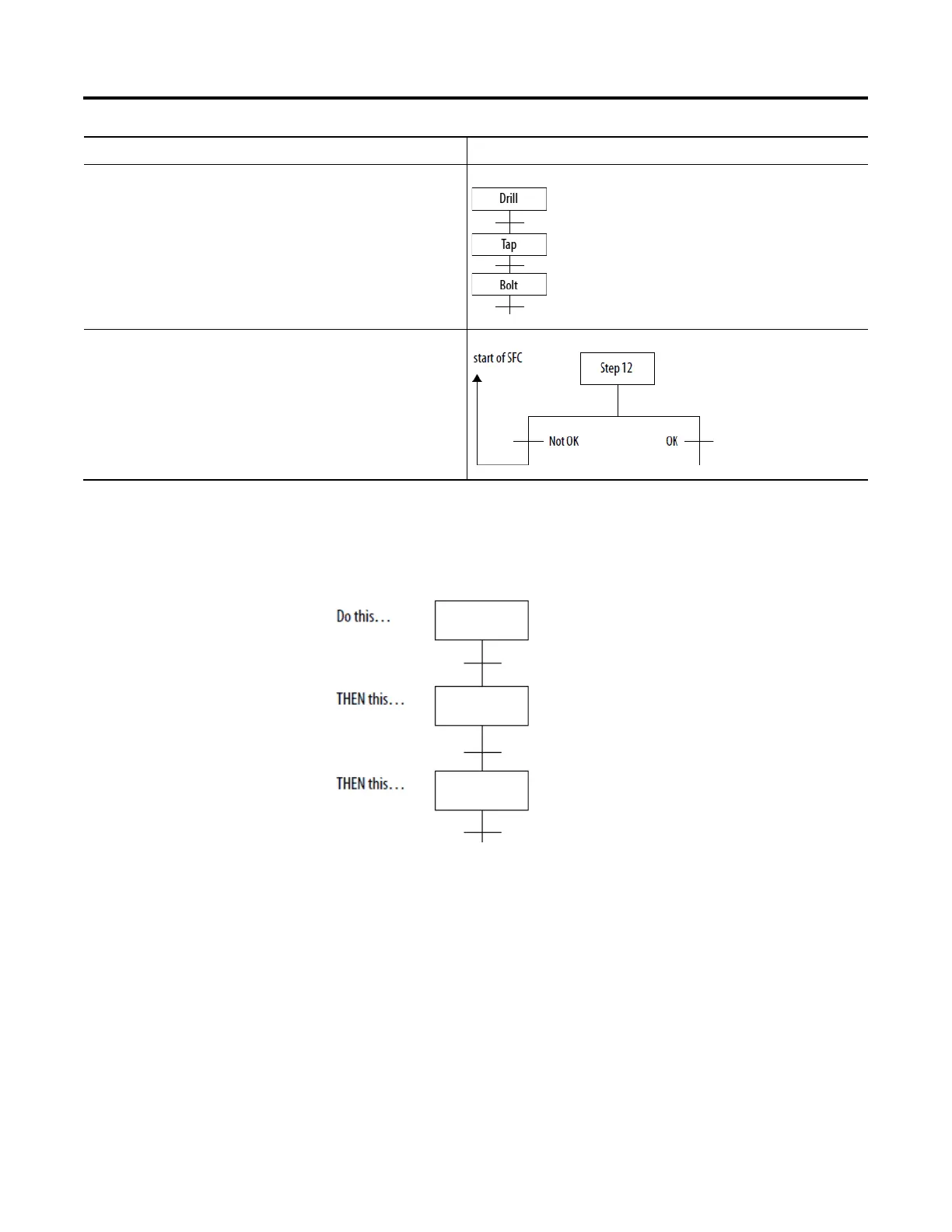

Example situation Example solution
At station 12, the machine drills, taps, and bolts a part. The steps occur one after the
other.
Sequence
Step 12 inspects a process for the correct mix of chemicals.
• If OK, then continue with the remaining steps.
• If not OK, go to the top of the SFC and purge the system.
Wire
A sequence is a group of steps that execute one after the other.
A selection branch represents a choice between one path (step or group of steps)
or another path (an OR structure).
• Only one path executes.
• By default the SFC checks the transitions from left to right.
Sequence
Selection branch

Allen-Bradley LOGIX 5000 Specifications

General

Controller Type	Programmable Automation Controller (PAC)
Communication Protocols	EtherNet/IP, ControlNet, DeviceNet
Programming Software	Studio 5000
Programming Languages	Ladder Logic, Structured Text, Function Block Diagram, Sequential Function Chart
Supported I/O	Analog
Power Supply	24V DC, 120/240V AC (depending on module)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Redundancy	Supported with specific modules and configurations
Certifications	UL, CE
