Rockwell Automation Publication 2711P-UM006A-EN-P - November 2010 15
Overview Chapter 1

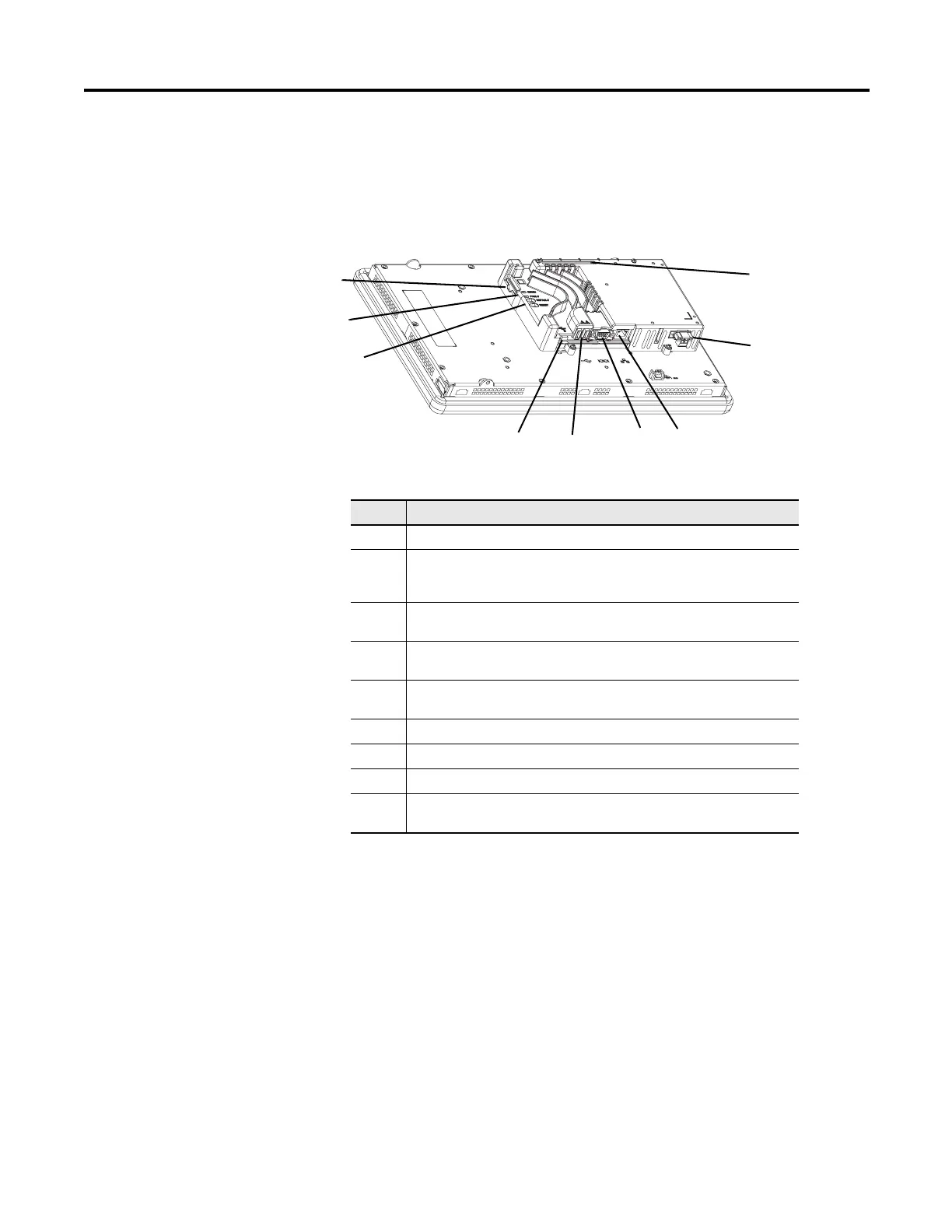

Configured Terminals
A configured terminal, ordered as a single-catalog number, has a display module
and logic module.
An optional DH+/DH-485 or ControlNet communication module can be
added later for additional network capabilities.
1
2
3
4
5
6
7
8
9
Table 4 - Logic Module Features
Item Feature
1 Network interface connector for optional communication module
2 AC or DC power input
(1)
• Isolated 18…32V DC
• 85…264V AC
(1) For DC applications using AC power, an external, remote AC-to-DC power supply, cat. no.
2711P-RSACDIN, is available for DIN-rail mounting.
3 10/100 BaseT, Auto MDI/MDI-X, Ethernet port for logic controller
communication
4 Serial RS-232 port for file transfers, printing, and logic controller
communication
5 2 USB host ports for attaching USB devices including mouse, keyboard,
printer, and flash drives that are hot-swappable
6 1 USB device port for connecting a host personal computer
7 Reset switches
8 Status indicators
9 Secure Digital (SD) card slot that is hot-swappable and supports cat. no.
1784-SDx SD cards.
