58 Rockwell Automation Publication 2711P-UM006A-EN-P - November 2010
Chapter 4 Configuration Mode

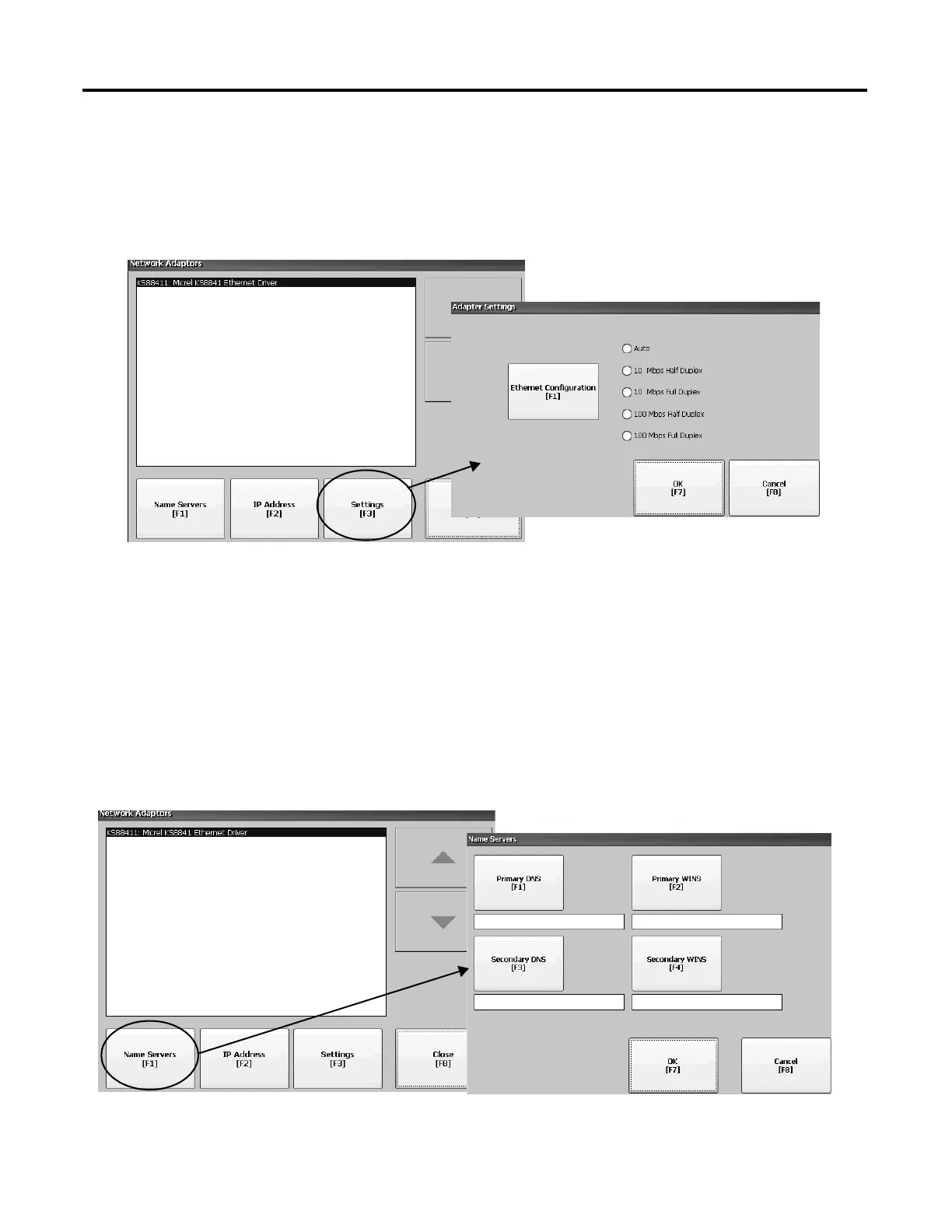

Set the Ethernet Link Speed
You can set the speed and duplex setting of the Ethernet link.
1. Select Terminal Settings>Networks and Communications>Network
Connections>Network Adapters.
2. Press the Settings button to view or modify the Ethernet link settings.
3. Press the Ethernet Configuration button to select an Ethernet link option
for your Ethernet connection.
The default setting of Auto will automatically sense the link option and
speed based on the terminal connection to a network.
Define Name Server Addresses
You can define name server addresses for the EtherNet/IP network adapter.
These addresses are automatically assigned if DHCP is enabled for the adapter.
