Allen-Bradley PowerFlex 700H Service Manual

D-6 Disassembly / Assembly Diagrams

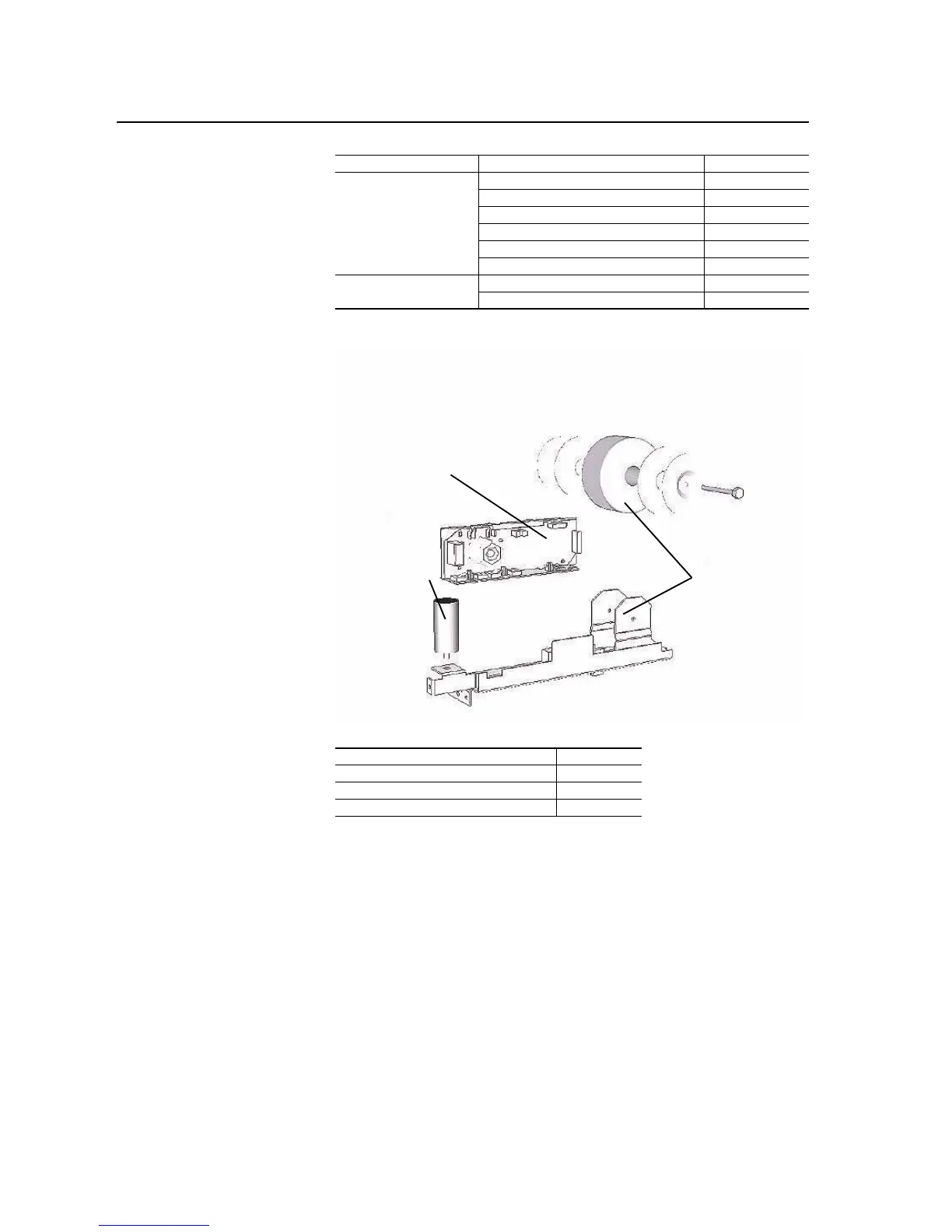

Figure D.5 Fan Inverter
Table D.E Fan Inverter Part Numbers
Output Power Module 400/480V SK-H1-QOUT-D590
400/480V SK-H1-QOUT-D650
400/480V SK-H1-QOUT-D730
600/690V SK-H1-QOUT-E460
600/690V SK-H1-QOUT-E502
600/690V SK-H1-QOUT-E590
Rectifying Module 400/480V 20-FR10820
600/690V 20-FR10821
Part Name Spare Part No.
Fan Capacitor 7Pf 450V ac 20-PP00060
Fan Inverter Board 20-VB00299
Output Transformer Assembly for Fan Inverter 20-FR10845
Part Name Spare Part No.
Output Transformer
Assembly for Fan
Inverter
Fan Inverter Board
Fan Capacitor
