Introduction
How a Tumbler Works

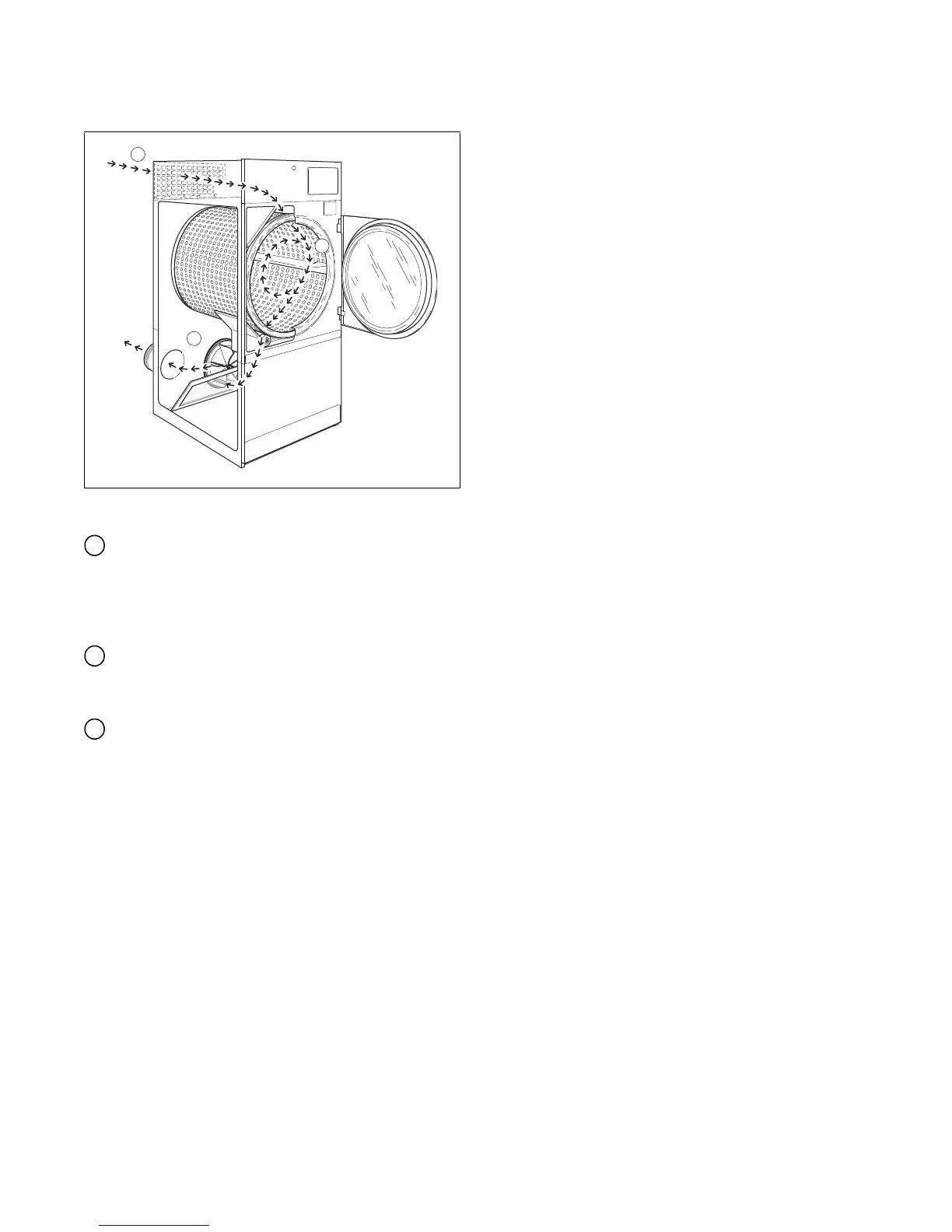

A tumbler uses heated air to dry loads of laundry.
When the motor is started, the exhaust fan pulls
room temperature air in through the air intake at
the rear of the tumbler and over the heat source
(burner flame for gas, heating element for
electric, and coil for steam).
The heated air moves into the cylinder, where it is
circulated through the wet load by the tumbling
action of the cylinder.
The air then passes through the lint filter, exhaust
fan, and is vented to the outdoors.
Theory of Operation of Instant
Electronic Ignition
IMPORTANT: The Non-CE Marked Instant
Electronic Ignition system will attempt to light the
gas by sparking for approximately 15 seconds. If
gas ignition does not take place within
approximately 15 seconds, the Instant Electronic
Ignition control will go into safety lockout and the
valve will no longer open until Instant Electronic
Ignition control is reset. To reset Instant Electronic
Ignition control, remove power from control by
opening and closing the tumbler door. If condition
persists, check that the gas shut-off valve is in “on”
position and that the gas service is properly
connected.
If condition persists:
1. Check resistance of high tension lead
(approximately 1000 ohms/inch), and replace if
not within resistance range.
2. Check voltage present at valve.
3. Check that machine is properly grounded.
4. Check the gap between igniter and burner tube
(gap should be 1/4-3/8 inch).
5. Check that burner ports are not blocked or
plugged under the igniter.
