Troubleshooting
4. Motor Does Not Stop

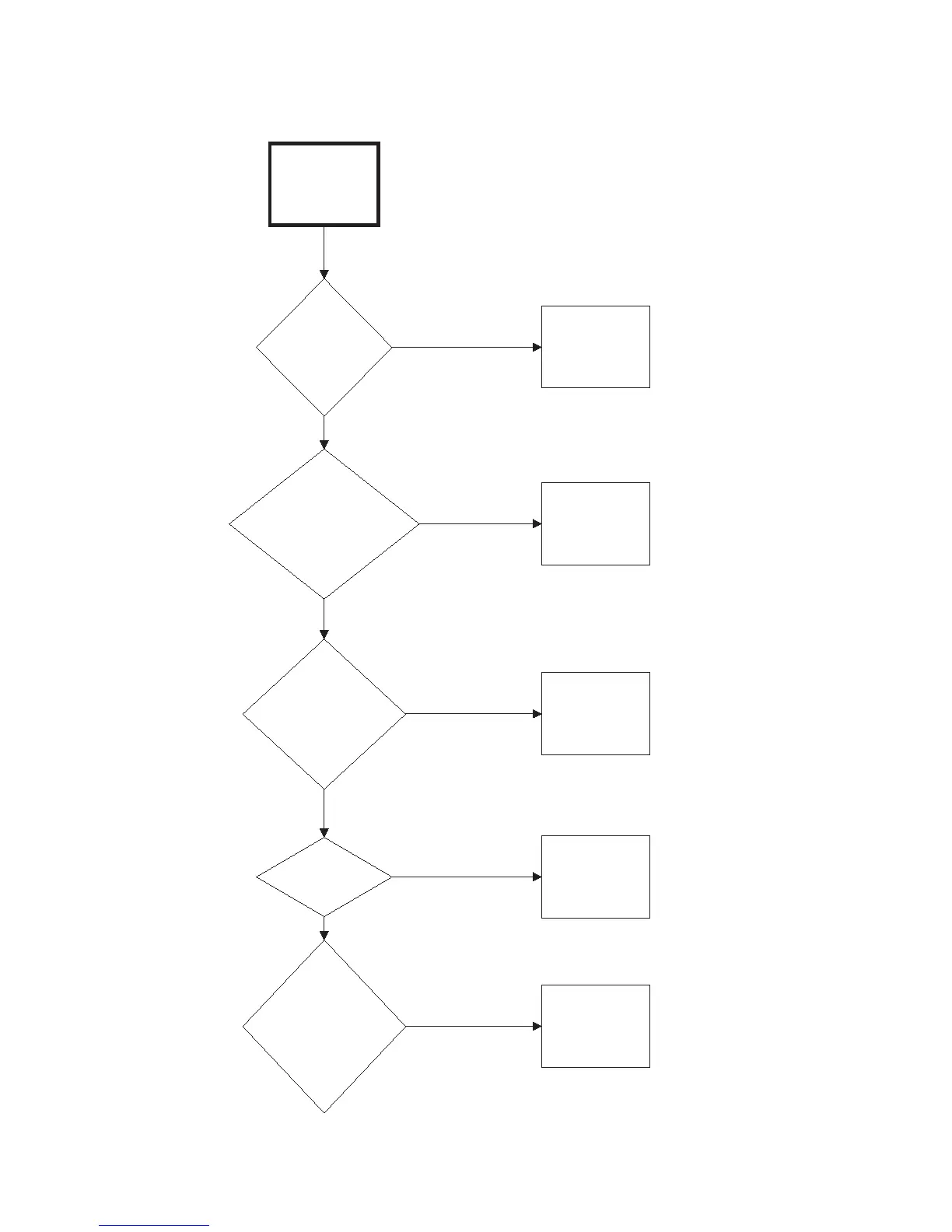

Motor does not
stop
Is door
switch
inoperative?
Test switch and
replace if
inoperative.
Non-Metered
Models: Is timer
or relay
inoperative?
Test timer and
relay and
replace if
inoperative.
Metered
Models: Is
accumulator
inoperative?
Tes t
accumulator
and replace if
inoperative.
Is motor relay
or motor
contactor
inoperative?
Check
relay/contactor
and replace if
inoperative.
TMB1876S
Yes
No
Yes
No
Yes
Yes
Is wiring
incorrect?
Refer to wiring
diagram
located inside
contactor box.
No
Yes
No
